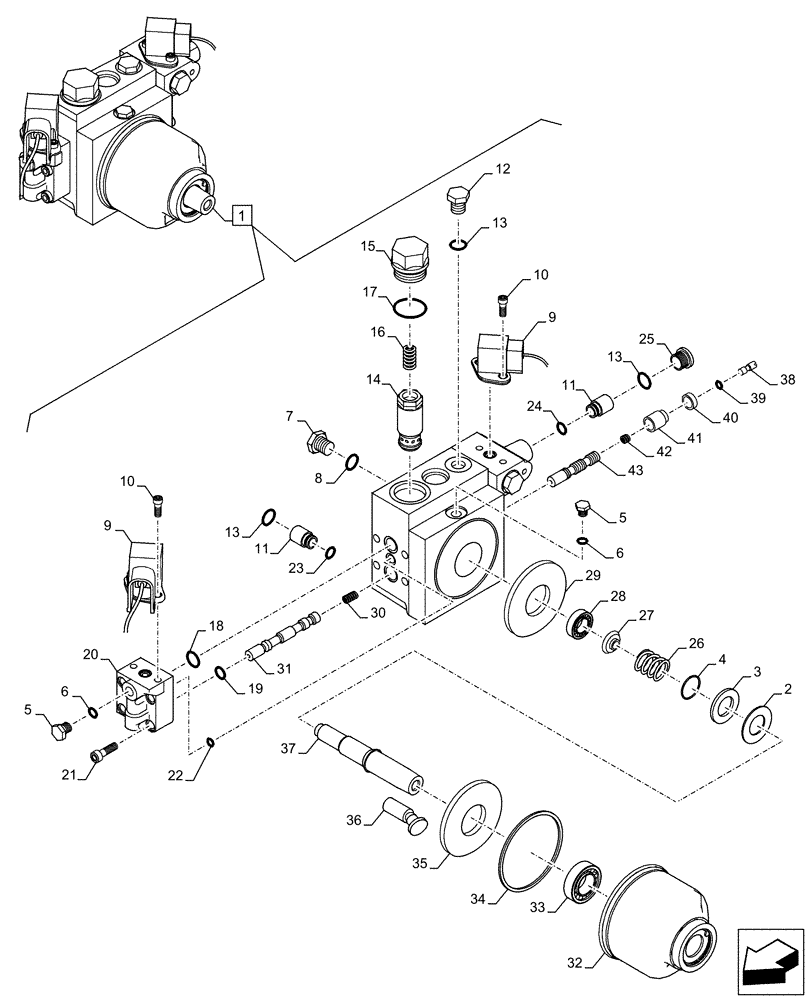

Запчасти Case CX500D LC (35.820.AB[02]) - FAN, RADIATOR, HYDRAULIC MOTOR, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

KWH0018

ELECTRIC MOTOR

ASSY, Incl 2 - 43

1шт.

2

LE015740

SNAP RING

1шт.

3

LH005090

SPACER

1шт.

4

LE015750

OIL SEAL

1шт.

5

LK005780

PLUG

2шт.

6

LE015760

O-RING

2шт.

7

LK005790

PLUG

4шт.

8

LE015770

O-RING

4шт.

9

LW005290

COVER

2шт.

10

LA011270

BOLT,Spcl

4шт.

11

LJ015430

FILTER SCREEN

2шт.

12

LK005800

PLUG

1шт.

13

LE015780

O-RING

3шт.

14

LJ015440

VALVE PRESSURE RELIE

1шт.

15

LK005810

PLUG

1шт.

16

LG006300

SPRING

1шт.

17

LE015790

O-RING

1шт.

18

LE015810

O-RING

1шт.

19

LE015820

O-RING

1шт.

20

LJ015450

VALVE PRESSURE RELIE

1шт.

21

LA011280

BOLT,Spcl

4шт.

22

LE015830

O-RING

1шт.

23

LE015850

O-RING

1шт.

24

LE015860

O-RING

1шт.

25

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

1шт.

26

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

1шт.

27

NSS

NOT SOLD SEPARAT

Holder, Incl in 1

1шт.

28

NSS

NOT SOLD SEPARAT

Bearing, Incl in 1

1шт.

29

NSS

NOT SOLD SEPARAT

Plate, Incl in 1

1шт.

30

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

1шт.

31

NSS

NOT SOLD SEPARAT

Spool, Incl in 1

1шт.

32

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

33

NSS

NOT SOLD SEPARAT

Bearing, Incl in 1

1шт.

34

NSS

NOT SOLD SEPARAT

Seal, Incl in 1

1шт.

35

NSS

NOT SOLD SEPARAT

Plate, Incl in 1

1шт.

36

NSS

NOT SOLD SEPARAT

Piston, Incl in 1

1шт.

37

NSS

NOT SOLD SEPARAT

Shaft, Incl in 1

1шт.

38

NSS

NOT SOLD SEPARAT

Cap, Incl in 1

1шт.

39

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

1шт.

40

NSS

NOT SOLD SEPARAT

Retainer, Incl in 1

1шт.

41

NSS

NOT SOLD SEPARAT

Holder, Incl in 1

1шт.

42

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

1шт.

43

NSS

NOT SOLD SEPARAT

Spool, Incl in 1

1шт.
