(35.738.AE[03]) - VAR - 461572 - BUCKET CYLINDER, LINES (ARM L=2.53M)

Запчасти Case CX500D LC (35.738.AE[03]) - VAR - 461572 - BUCKET CYLINDER, LINES (ARM L=2.53M) (35) - HYDRAULIC SYSTEMS

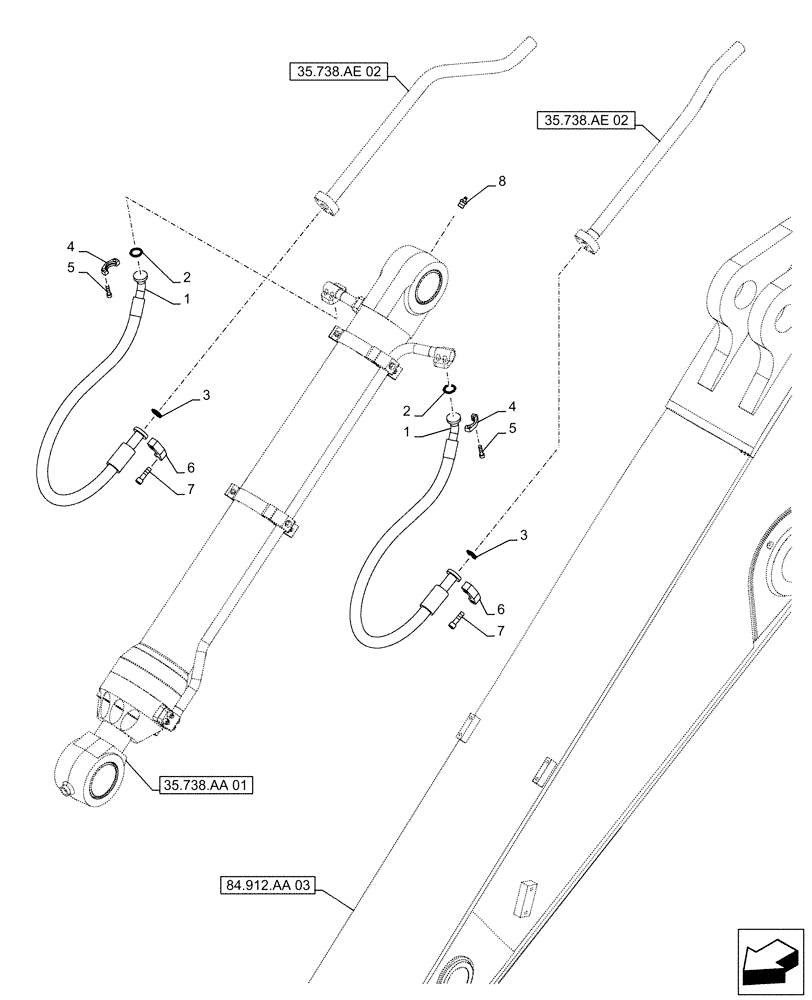

Схема запчастей Case CX500D LC - (35.738.AE[03]) - VAR - 461572 - BUCKET CYLINDER, LINES (ARM L=2.53M) (35) - HYDRAULIC SYSTEMS
35.738.aa 01
7
7
5
2
3
4
2
4
6
1
3
8
6
5
1
35.738.ae 02
35.738.ae 02
84.912.aa 03
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KTV20410

HYDRAULIC HOSE

25mm ID x 1500mm, from Main Control Valve to Bucket Cylinder

2шт.

2

162246A1

O-RING

2шт.

3

153626A1

O-RING

2шт.

4

153459A1

FLANGE

4шт.

5

862-10040

HEX SOC SCREW,M10 x 40mm, Cl 12.9

8шт.

6

150124A1

FLANGE

4шт.

7

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

8шт.

8

M01X0813

NIPPLE, LUBE

1шт.
