(35.738.AE[02]) - VAR - 461572 - BUCKET CYLINDER, LINES

Запчасти Case CX500D LC (35.738.AE[02]) - VAR - 461572 - BUCKET CYLINDER, LINES (35) - HYDRAULIC SYSTEMS

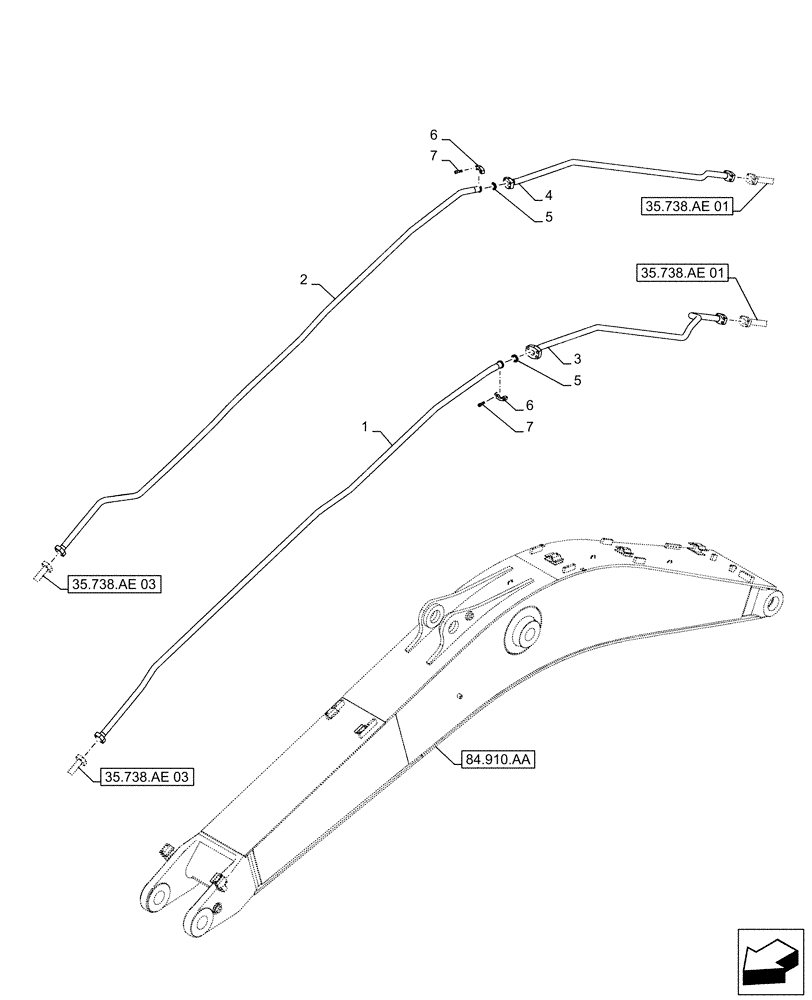

Схема запчастей Case CX500D LC - (35.738.AE[02]) - VAR - 461572 - BUCKET CYLINDER, LINES (35) - HYDRAULIC SYSTEMS
35.738.ae 01
4
2
5
3
6
5
1
6
7
7
84.910.aa
35.738.ae 03
35.738.ae 03
35.738.ae 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KTV20500

PIPE

Bucket Cylinder to Main Control Valve

1шт.

2

KTV20520

PIPE

Bucket Cylinder to Main Control Valve

1шт.

3

KTV20491

PIPE

Bucket Cylinder to Main Control Valve

1шт.

4

KTV20511

PIPE

Bucket Cylinder to Main Control Valve

1шт.

5

153626A1

O-RING

2шт.

6

150124A1

FLANGE

4шт.

7

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

8шт.
