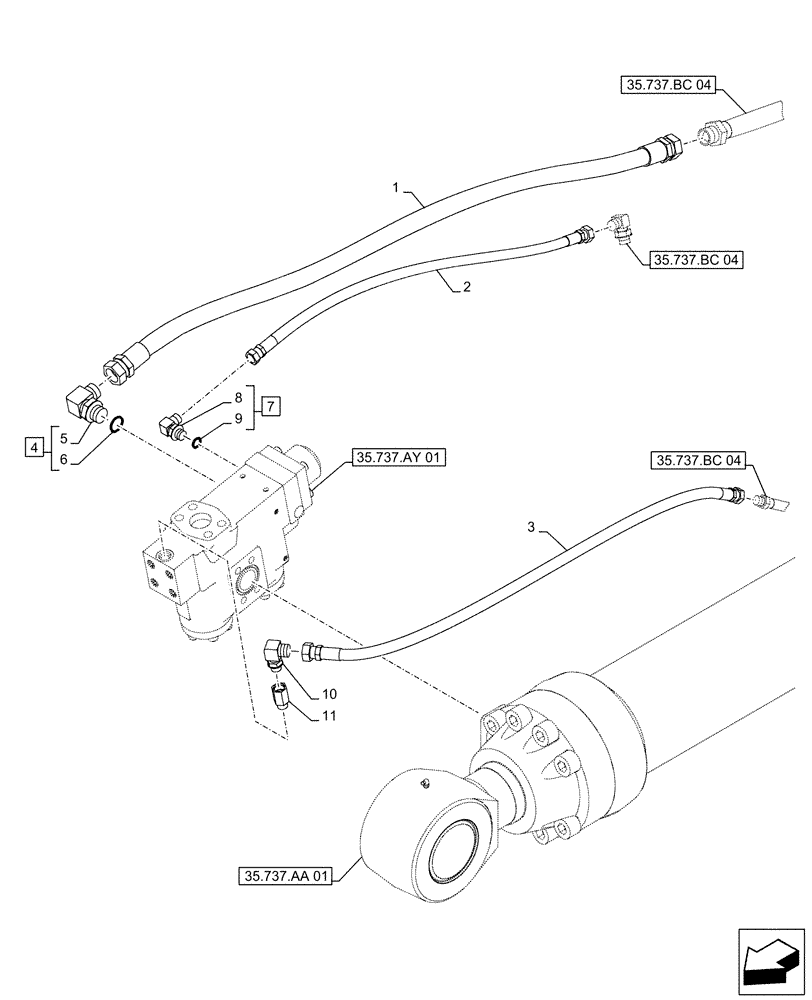

Запчасти Case CX500D LC (35.737.BC[05]) - VAR - 481064 - ARM, CYLINDER, SAFETY VALVE, LINES (35) - HYDRAULIC SYSTEMS

1

KHJ35510

HYDRAULIC HOSE

19mm ID x 3650mm, to Manifold Valve

1шт.

2

KHJ35500

HYDRAULIC HOSE

9mm ID x 4300mm, to Manifold Valve

1шт.

3

KHJ35490

HYDRAULIC HOSE

12mm ID x 4100mm, o Manifold Valve

1шт.

4

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

ASSY, Incl 5 - 6

1шт.

5

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 4

1шт.

6

150542A1

O-RING

1шт.

7

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

ASSY, Incl 8 - 9

1шт.

8

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 7

1шт.

9

150031A1

O-RING,10mm ID x 24mm OD

1шт.

10

157937A1

ELBOW

1шт.

11

KHV0373

STUD

1шт.
