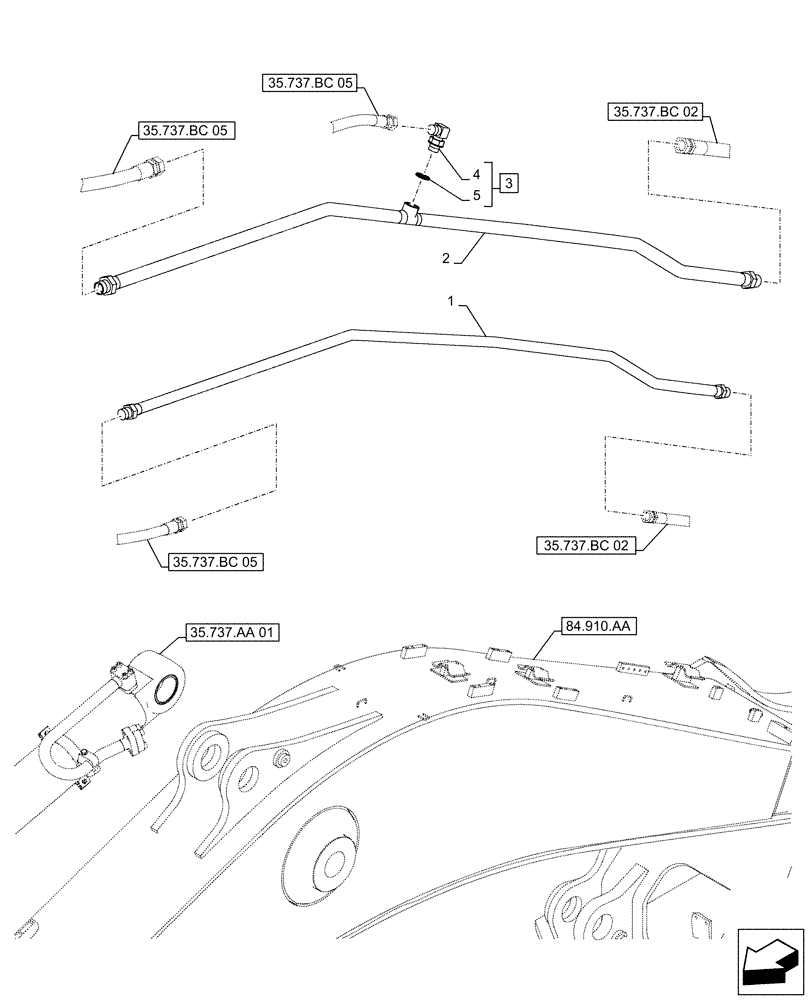

Запчасти Case CX500D LC (35.737.BC[04]) - VAR - 481064 - ARM, CYLINDER, SAFETY VALVE, LINES (35) - HYDRAULIC SYSTEMS
![Схема запчастей Case CX500D LC - (35.737.BC[04]) - VAR - 481064 - ARM, CYLINDER, SAFETY VALVE, LINES (35) - HYDRAULIC SYSTEMS](https://partsell.ru/storage/images/casece/5394495.png)
35.737.bc 05
5
3
2
4
1
35.737.bc 02
35.737.bc 02
84.910.aa
35.737.aa 01
35.737.bc 05
35.737.bc 05
№
Артикул
Название
Примечание
Количество
1
KTV21280
PIPE
from Arm Cylinder to Manifold valve
1шт.
2
KTV21290
PIPE
from Arm Cylinder to Manifold valve
1шт.
3
150916A1
ELBOW,90 Degree, 3/8" O-Ring x 3/8"
ASSY, Incl 4 - 5
1шт.
4
NSS
NOT SOLD SEPARAT
90° Fitting, Incl in 3
1шт.
5
154475A1
O-RING
1шт.
Выбрано товаров: 5
