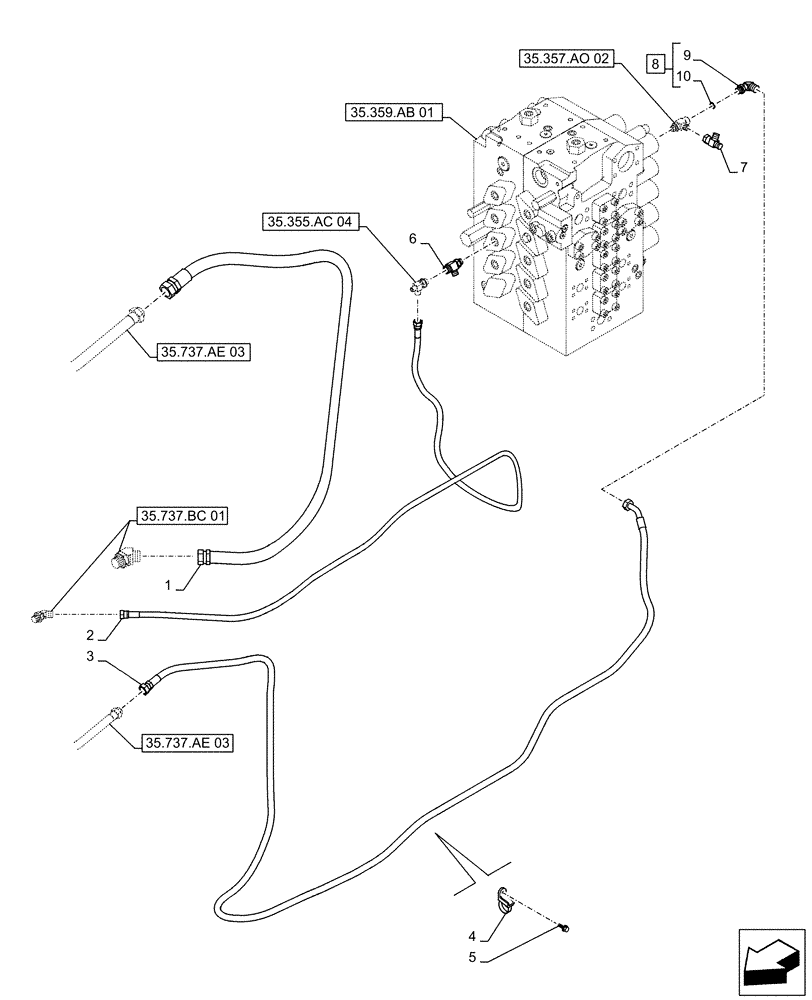

Запчасти Case CX500D LC (35.737.BC[02]) - VAR - 481064 - ARM, CYLINDER, SAFETY VALVE, LINE (35) - HYDRAULIC SYSTEMS

1

KTJ17210

HYDRAULIC HOSE

1640mm, from Control Valve to Manifold Valve

1шт.

2

KHJ35390

HYDRAULIC HOSE

2400mm, from Control Valve to Manifold Valve

1шт.

3

KHJ35400

HYDRAULIC HOSE

3600mm, from Control Valve to Arm Cylinder

1шт.

4

KHR2581

CLAMP

4шт.

5

KHJ1215

BOLT,Spcl

4шт.

6

KHJ31880

TEE

1шт.

7

KHJ2234

TEE

1шт.

8

KHJ28720

ELBOW

ASSY, G3/8XG1/2, Incl 9 - 10

1шт.

9

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 8

1шт.

10

150031A1

O-RING,10mm ID x 24mm OD

1шт.
