(35.737.BC[01]) - VAR - 481064 - ARM, CYLINDER, SAFETY VALVE, LINE

Запчасти Case CX500D LC (35.737.BC[01]) - VAR - 481064 - ARM, CYLINDER, SAFETY VALVE, LINE (35) - HYDRAULIC SYSTEMS

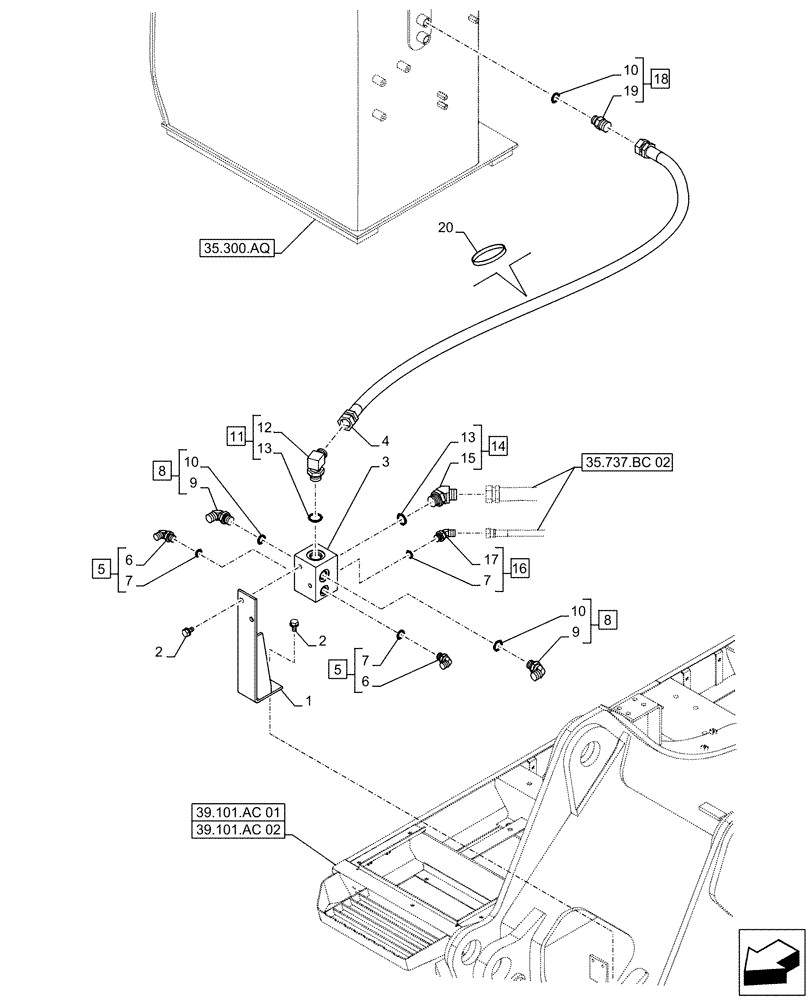

Схема запчастей Case CX500D LC - (35.737.BC[01]) - VAR - 481064 - ARM, CYLINDER, SAFETY VALVE, LINE (35) - HYDRAULIC SYSTEMS
39.101.ac 01
13
5
15
1
2
3
18
19
5
7
10
10
7
17
2
20
13
11
12
16
8
9
8
7
4
6
14
6
9
10
39.101.ac 02
35.737.bc 02
35.300.aq
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KTJ12330

BRACKET

1шт.

2

166351A1

BOLT,Sems, M10 x 20mm

4шт.

3

KTJ12320

MANIFOLD VALVE

1шт.

4

KRJ6705

HYDRAULIC HOSE

from Sump Tank to Manifold Valve

1шт.

5

KHJ28590

ELBOW

ASSY, G3/8XG3/8, Incl 6 - 7

2шт.

6

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 5

2шт.

7

150031A1

O-RING,10mm ID x 24mm OD

3шт.

8

KHJ28600

ELBOW

ASSY, G1/2XG1/2, 9 - 10

2шт.

9

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 8

2шт.

10

150539A1

O-RING

3шт.

11

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

ASSY, G3/4XG3/4, Incl 12 -13

1шт.

12

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 11

1шт.

13

150542A1

O-RING

2шт.

14

157586A1

ELBOW

ASSY, G3/4XG3/4, Incl 13 - 15

1шт.

15

NSS

NOT SOLD SEPARAT

45° Fitting, Incl in 14

1шт.

16

KHJ28640

ELBOW

ASSY, G3/8XG3/8, Incl 7 - 17

1шт.

17

NSS

NOT SOLD SEPARAT

45° Fitting, Incl in 16

1шт.

18

161102A1

ADAPTER

ASSY, Incl 10 - 19

1шт.

19

NSS

NOT SOLD SEPARAT

Fitting, Incl in 18

1шт.

20

150071A1

MOUNTING CLIP

11шт.
