(35.737.AE[03]) - VAR - 481064 - ARM, CYLINDER, SAFETY VALVE, LINES

Запчасти Case CX500D LC (35.737.AE[03]) - VAR - 481064 - ARM, CYLINDER, SAFETY VALVE, LINES (35) - HYDRAULIC SYSTEMS

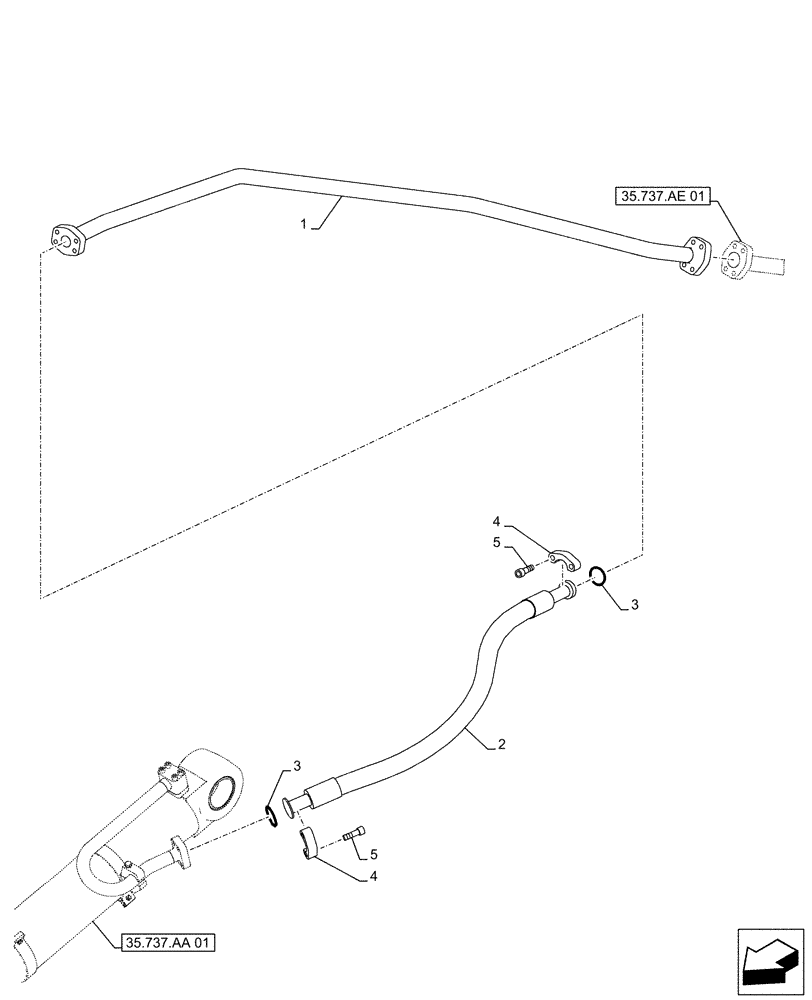

Схема запчастей Case CX500D LC - (35.737.AE[03]) - VAR - 481064 - ARM, CYLINDER, SAFETY VALVE, LINES (35) - HYDRAULIC SYSTEMS
35.737.ae 01
2
4
5
3
1
5
4
3
35.737.aa 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KTV20471

PIPE

To Main Control Valve

1шт.

2

KTV19940

HYDRAULIC HOSE

38mm ID x 1500mm

1шт.

3

168211A1

O-RING

2шт.

4

KTJ0169

FLANGE

4шт.

5

862-16050

HEX SOC SCREW,M16 x 50mm, Cl 12.9

8шт.
