(35.737.AE[01]) - ARM CYLINDER, LINES

Запчасти Case CX500D LC (35.737.AE[01]) - ARM CYLINDER, LINES (35) - HYDRAULIC SYSTEMS

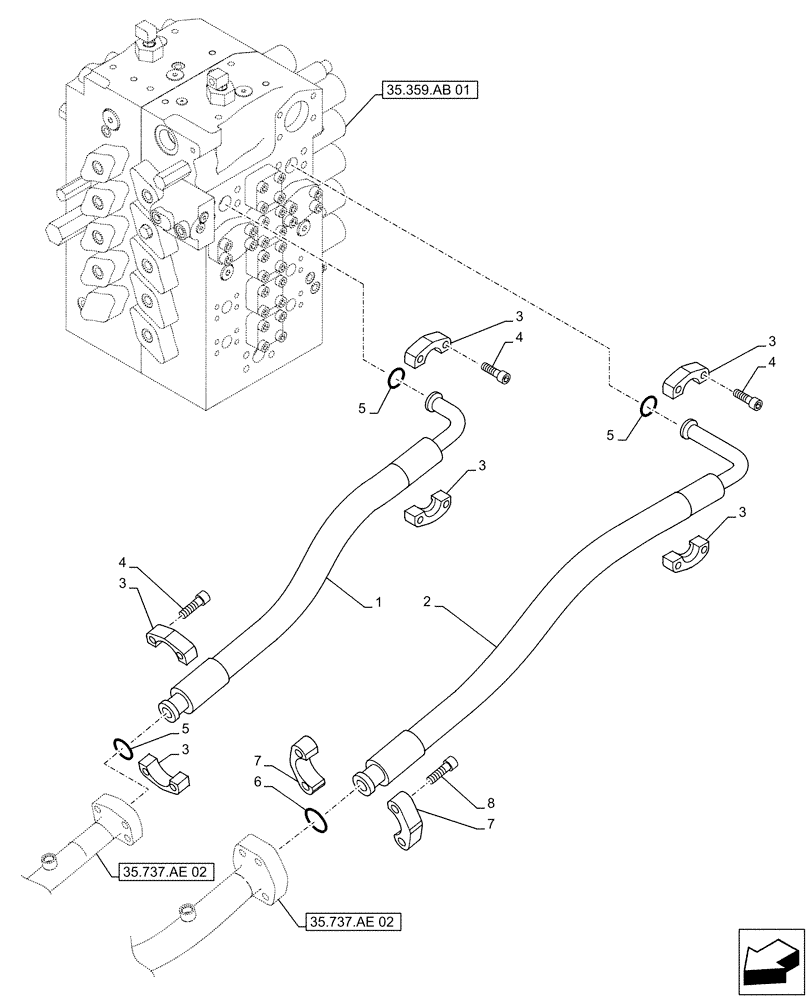

Схема запчастей Case CX500D LC - (35.737.AE[01]) - ARM CYLINDER, LINES (35) - HYDRAULIC SYSTEMS
35.737.ae 02
4
8
3
5
3
3
4
6
3
2
7
3
5
4
7
1
5
3
35.359.ab 01
35.737.ae 02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KTJ15760

HYDRAULIC HOSE

32mm ID x 1580mm, from Control Valve to Arm Cylinder

1шт.

2

KTJ15500

HYDRAULIC HOSE

32mm ID x 1720mm, from Control Valve to Arm Cylinder

1шт.

3

150124A1

FLANGE

6шт.

4

108R014Y045R

BOLT,Hex Skt, M14 x 45mm, Cl 12.9

12шт.

5

153626A1

O-RING

3шт.

6

162484A1

O-RING

1шт.

7

KTJ0169

FLANGE

2шт.

8

862-16050

HEX SOC SCREW,M16 x 50mm, Cl 12.9

4шт.
