(35.736.AC[01]) - LIFT CYLINDER, BOOM, LINE

Запчасти Case CX500D LC (35.736.AC[01]) - LIFT CYLINDER, BOOM, LINE (35) - HYDRAULIC SYSTEMS

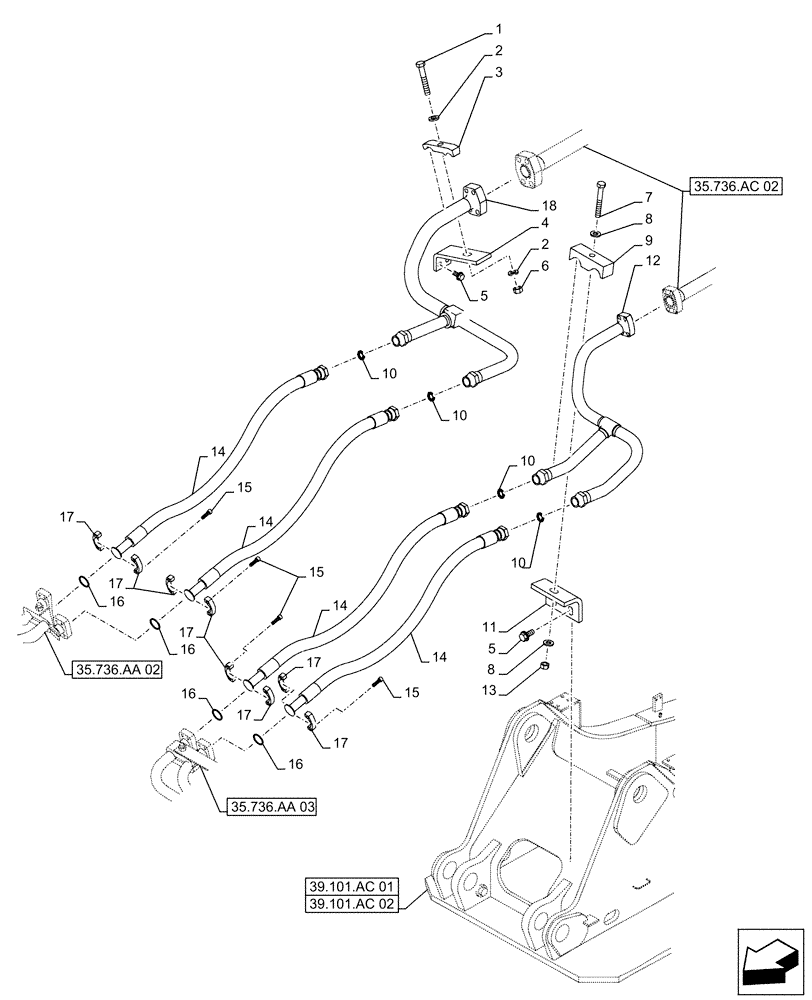

Схема запчастей Case CX500D LC - (35.736.AC[01]) - LIFT CYLINDER, BOOM, LINE (35) - HYDRAULIC SYSTEMS
39.101.ac 01
4
8
16
1
17
13
15
17
2
14
6
14
10
17
5
14
16
5
11
9
15
14
12
10
16
16
17
2
8
3
10
17
17
7
15
18
10
39.101.ac 02
35.736.aa 03
35.736.aa 02
35.736.ac 02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

102R016Y100R

BOLT

1шт.

2

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

2шт.

3

152995A1

COLLAR

1шт.

4

KTJ2216

BRACKET

1шт.

5

166352A1

BOLT

6шт.

6

829-1416

NUT,M16, Cl 10

1шт.

7

827-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

2шт.

8

150811A1

WASHER

4шт.

9

162308A1

COLLAR

2шт.

10

KHJ1361

O-RING,0.07" Thk x 0.926" ID

4шт.

11

166659A1

BRACKET

2шт.

12

KTJ15200

PIPE

from Control Valve to Boom Cylinder

1шт.

13

162R012VR

NUT

2шт.

14

KTJ13470

HYDRAULIC HOSE

from Control Valve to Boom Cylinder

4шт.

15

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

16шт.

16

162246A1

O-RING

4шт.

17

153459A1

FLANGE

8шт.

18

KTJ15190

PIPE

from Control Valve to Boom Cylinder

1шт.
