(35.736.AA[01]) - VAR - 461028, 461543, 481858 - LIFT CYLINDER, BOOM, MOUNTING

Запчасти Case CX500D LC (35.736.AA[01]) - VAR - 461028, 461543, 481858 - LIFT CYLINDER, BOOM, MOUNTING (35) - HYDRAULIC SYSTEMS

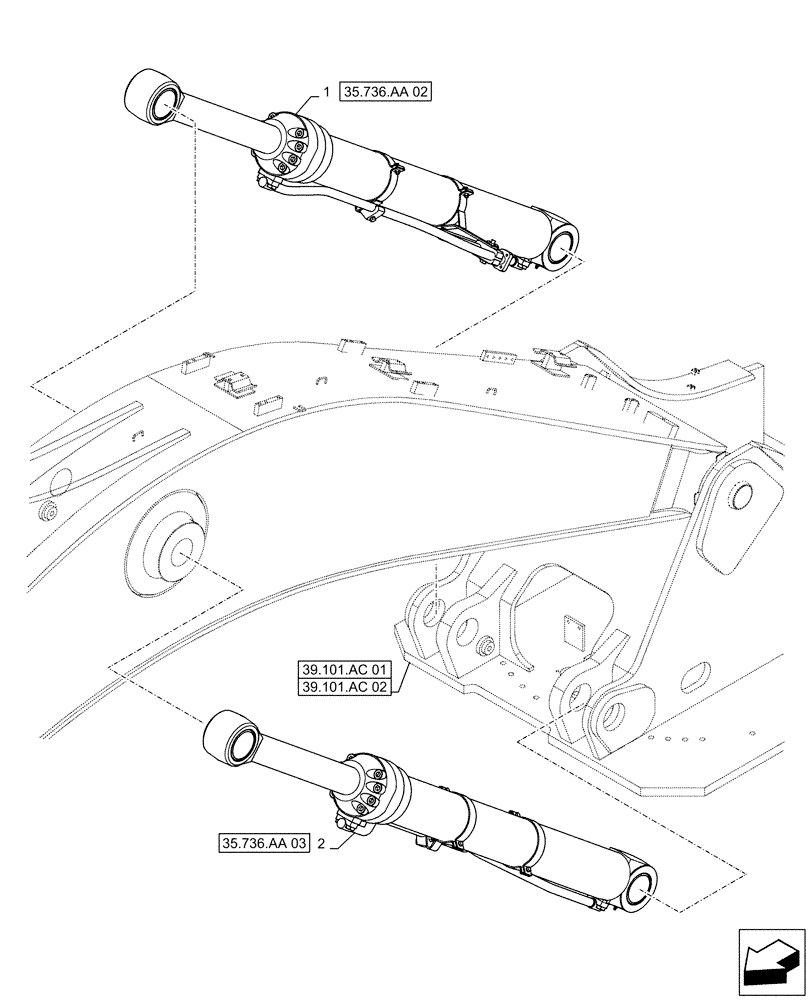

Схема запчастей Case CX500D LC - (35.736.AA[01]) - VAR - 461028, 461543, 481858 - LIFT CYLINDER, BOOM, MOUNTING (35) - HYDRAULIC SYSTEMS
39.101.ac 01
1
2
39.101.ac 02
35.736.aa 03
35.736.aa 02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KTV20810

HYDRAULIC CYLINDER

RH, ASSY

1шт.

See also Figure 84.910.AD (01)

1шт.

2

KTV20830

HYDRAULIC CYLINDER

LH, ASSY

1шт.

See also Figure 84.910.AD (01)

1шт.
