(35.360.AM[01]) - VAR - 461863 - BOOM, LINES, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX500D LC (35.360.AM[01]) - VAR - 461863 - BOOM, LINES, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

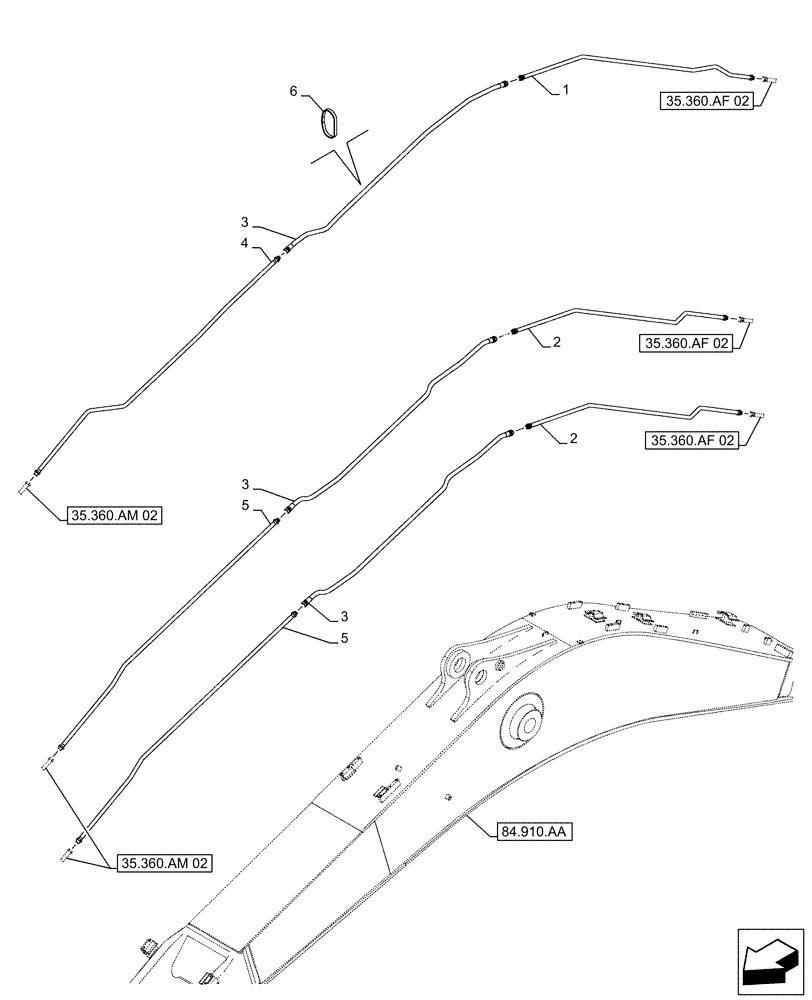

Схема запчастей Case CX500D LC - (35.360.AM[01]) - VAR - 461863 - BOOM, LINES, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
84.910.aa
5
6
5
1
3
2
4
3
2
3
35.360.am 02
35.360.am 02
35.360.af 02
35.360.af 02
35.360.af 02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KTV20590

PIPE

From Bucket Valve to Stop Valve

1шт.

2

KTV20570

PIPE

From Bucket Valve to Stop Valve

2шт.

3

KTV21230

HYDRAULIC HOSE

19mm ID x 2350mm

3шт.

4

KTV19691

PIPE

to Stop Valve

1шт.

5

KTV19680

PIPE

to Stop Valve

2шт.

6

150071A1

MOUNTING CLIP

380mm

10шт.
