(35.360.AL[03]) - VAR - 461561, 461865, 461868, 461869, 461871 - ARM, STOP, VALVE, HAMMER CIRCUIT, SHEARS, HIGH FLOW

Запчасти Case CX500D LC (35.360.AL[03]) - VAR - 461561, 461865, 461868, 461869, 461871 - ARM, STOP, VALVE, HAMMER CIRCUIT, SHEARS, HIGH FLOW (35) - HYDRAULIC SYSTEMS

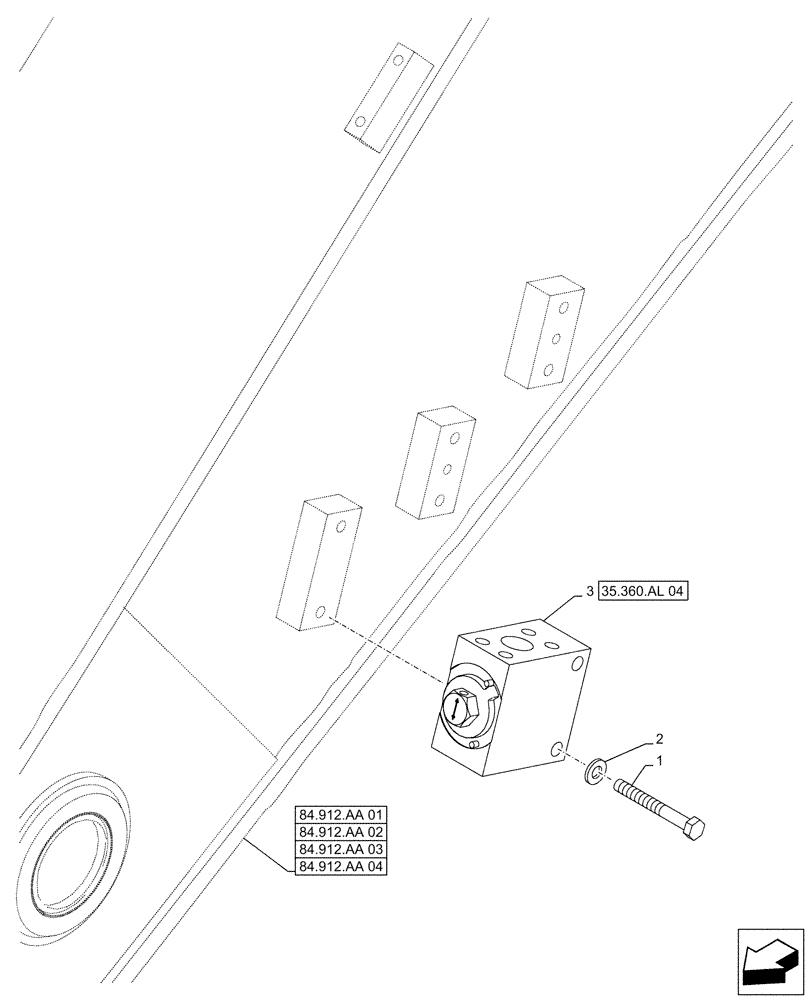

Схема запчастей Case CX500D LC - (35.360.AL[03]) - VAR - 461561, 461865, 461868, 461869, 461871 - ARM, STOP, VALVE, HAMMER CIRCUIT, SHEARS, HIGH FLOW (35) - HYDRAULIC SYSTEMS
84.912.aa 02
1
2
3
84.912.aa 03
35.360.al 04
84.912.aa 01
84.912.aa 04
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

827-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 10.9

M12 x 100mm

4шт.

2

150811A1

WASHER

4шт.

3

KHV12250

SHUT-OFF VALVE

ASSY, LH/RH

2шт.
