(35.360.AK[07]) - VAR - 461561, 461865, 461868, 461869, 461871 - ARM, LINES, HAMMER, SHEARS, HIGH FLOW (ARM L=2.53M)

Запчасти Case CX500D LC (35.360.AK[07]) - VAR - 461561, 461865, 461868, 461869, 461871 - ARM, LINES, HAMMER, SHEARS, HIGH FLOW (ARM L=2.53M) (35) - HYDRAULIC SYSTEMS

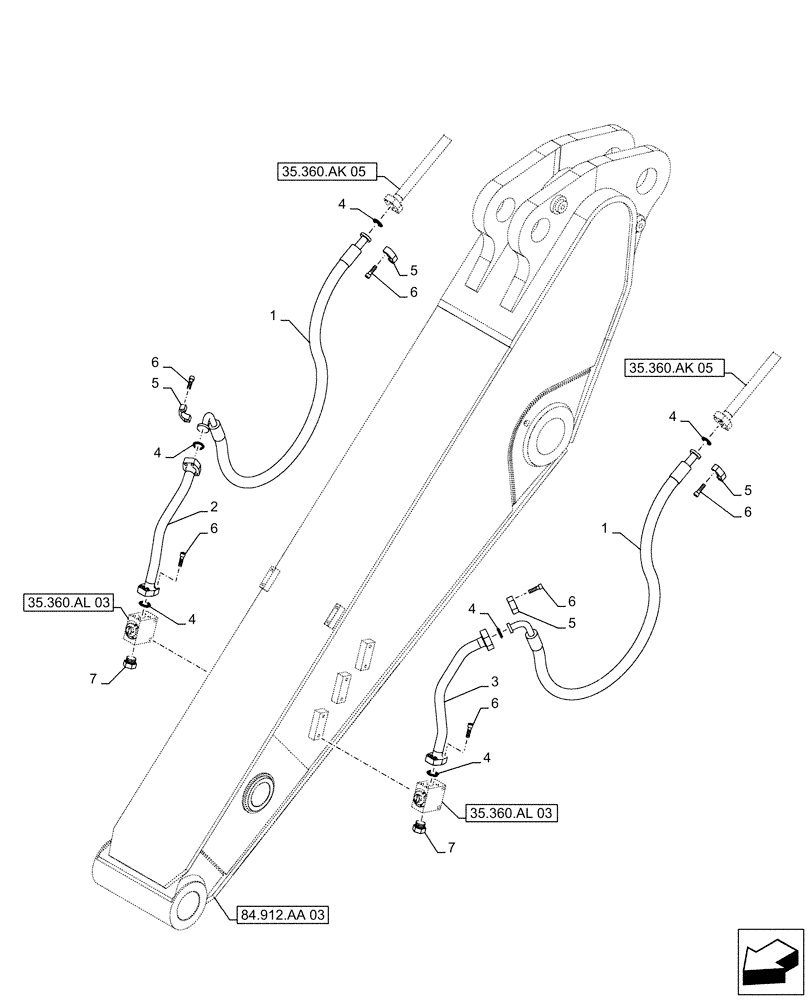

Схема запчастей Case CX500D LC - (35.360.AK[07]) - VAR - 461561, 461865, 461868, 461869, 461871 - ARM, LINES, HAMMER, SHEARS, HIGH FLOW (ARM L=2.53M) (35) - HYDRAULIC SYSTEMS
3
6
6
6
5
2
1
6
4
4
7
6
5
4
7
4
4
1
6
5
5
4
84.912.aa 03
35.360.al 03
35.360.al 03
35.360.ak 05
35.360.ak 05
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KBV16090

HYDRAULIC HOSE,31.80 mm ID x 2150.00 mm

2150mm, to Main Control Valve

2шт.

2

KTV20370

PIPE

1шт.

3

KTV20360

PIPE

1шт.

4

153626A1

O-RING

6шт.

5

150124A1

FLANGE

8шт.

6

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

24шт.

7

162335A1

PLUG

2шт.
