(35.360.AK[05]) - VAR - 461561, 461865, 461868, 461869 - BOOM, LINE, HAMMER, SHEARS, HIGH FLOW

Запчасти Case CX500D LC (35.360.AK[05]) - VAR - 461561, 461865, 461868, 461869 - BOOM, LINE, HAMMER, SHEARS, HIGH FLOW (35) - HYDRAULIC SYSTEMS

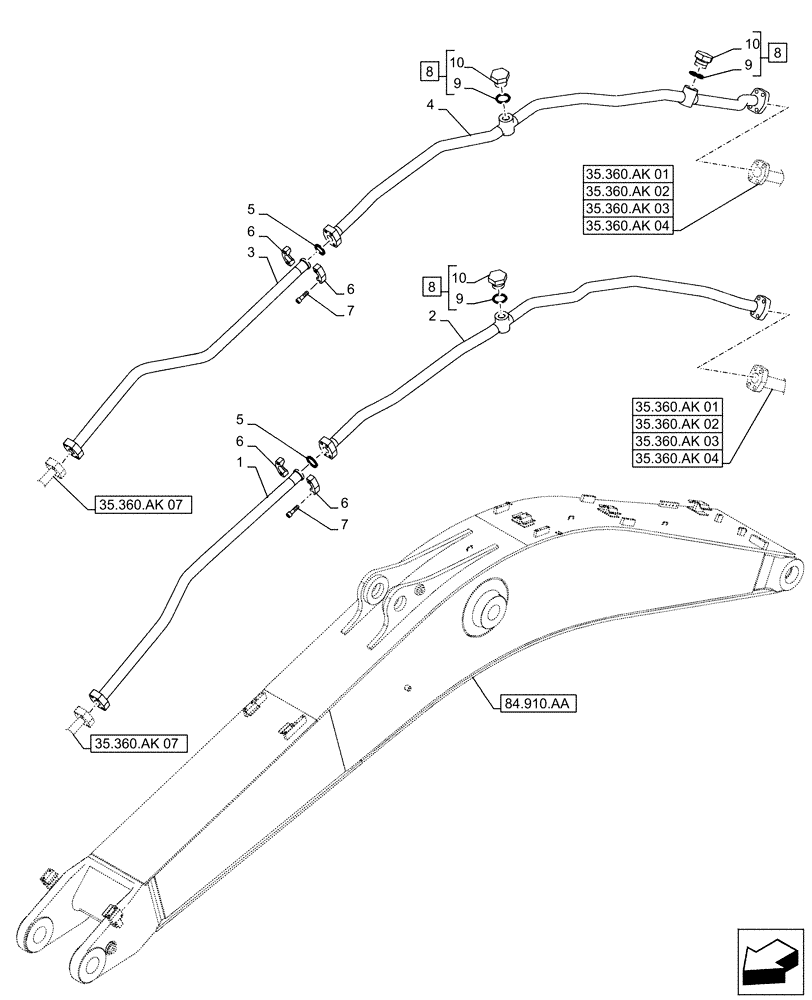

Схема запчастей Case CX500D LC - (35.360.AK[05]) - VAR - 461561, 461865, 461868, 461869 - BOOM, LINE, HAMMER, SHEARS, HIGH FLOW (35) - HYDRAULIC SYSTEMS
35.360.ak 02
8
6
8
5
8
9
2
10
9
6
3
10
7
6
1
10
6
7
4
5
9
35.360.ak 01
35.360.ak 01
35.360.ak 03
35.360.ak 03
35.360.ak 07
35.360.ak 07
35.360.ak 04
35.360.ak 04
84.910.aa
35.360.ak 02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KTV19620

PIPE

LH, to Stop Valve

1шт.

2

KTV20531

PIPE

LH, from Manifold

1шт.

3

KTV19630

PIPE

RH, to Stop valve

1шт.

4

KTV20551

PIPE

RH, from Manifold

1шт.

5

153626A1

O-RING

2шт.

6

150124A1

FLANGE

4шт.

7

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

8шт.

8

152924A1

PLUG

ASSY, G3/4", Incl 9, 10

3шт.

9

150542A1

O-RING

3шт.

10

NSS

NOT SOLD SEPARAT

Plug, Incl in 8

3шт.
