(35.360.AK[04]) - VAR - 461869 - BOOM, LINES, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX500D LC (35.360.AK[04]) - VAR - 461869 - BOOM, LINES, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

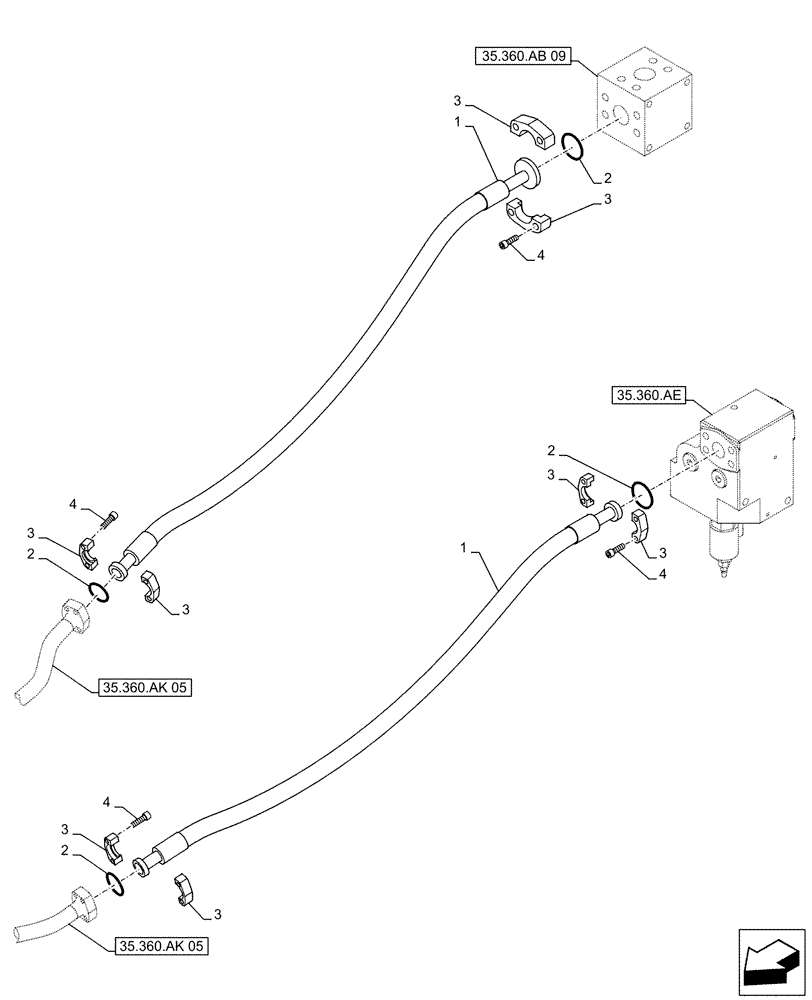

Схема запчастей Case CX500D LC - (35.360.AK[04]) - VAR - 461869 - BOOM, LINES, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
35.360.ae
4
3
4
3
2
3
4
2
4
3
2
2
3
3
3
1
3
1
35.360.ab 09
35.360.ak 05
35.360.ak 05
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KTJ12390

HYDRAULIC HOSE

32mm ID x 1850mm, to Stop Valve

2шт.

2

153626A1

O-RING

4шт.

3

150124A1

FLANGE

G1 1/4"

8шт.

4

108R014Y045R

BOLT,Hex Skt, M14 x 45mm, Cl 12.9

16шт.
