(35.360.AK[03]) - VAR - 461868 - BOOM, LINES, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX500D LC (35.360.AK[03]) - VAR - 461868 - BOOM, LINES, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

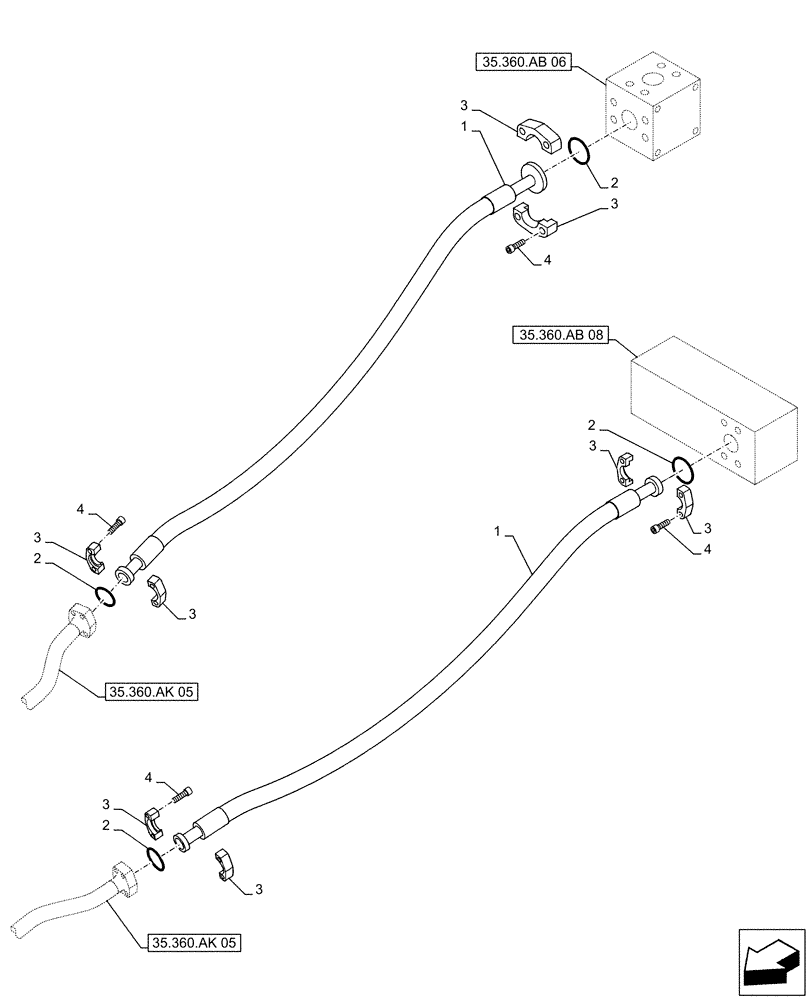

Схема запчастей Case CX500D LC - (35.360.AK[03]) - VAR - 461868 - BOOM, LINES, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
3
4
3
3
3
2
4
1
2
3
3
3
3
4
2
1
2
4
35.360.ab 08
35.360.ak 05
35.360.ak 05
35.360.ab 06
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KTJ12390

HYDRAULIC HOSE

32mm ID x 1850mm, to Stop Valve

2шт.

2

153626A1

O-RING

4шт.

3

150124A1

FLANGE

8шт.

4

108R014Y045R

BOLT,Hex Skt, M14 x 45mm, Cl 12.9

16шт.
