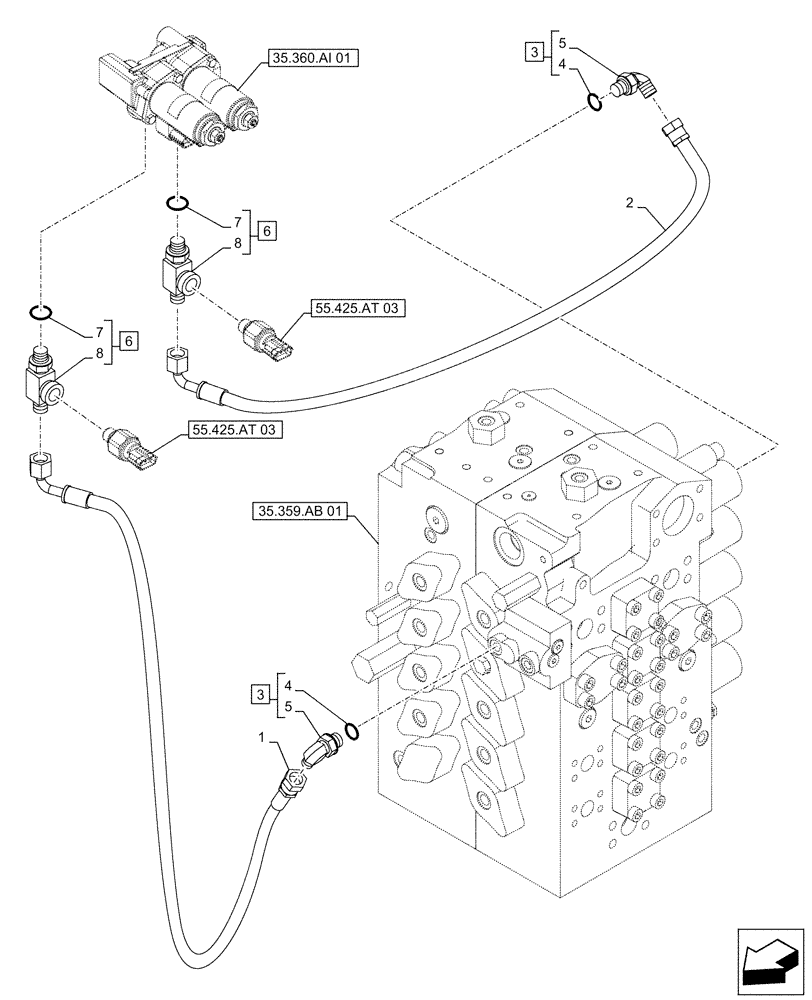

Запчасти Case CX500D LC (35.360.AJ[05]) - VAR - 461871, 461868, 461869 - HAMMER CIRCUIT, SHEARS, HIGH FLOW, SOLENOID VALVE, LINES, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
![Схема запчастей Case CX500D LC - (35.360.AJ[05]) - VAR - 461871, 461868, 461869 - HAMMER CIRCUIT, SHEARS, HIGH FLOW, SOLENOID VALVE, LINES, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS](https://partsell.ru/storage/images/casece/5395081.png)
55.425.at 03
3
8
4
1
4
5
8
7
5
6
6
2
3
7
35.360.ai 01
35.359.ab 01
55.425.at 03
№
Артикул
Название
Примечание
Количество
1
KHJ12230
HYDRAULIC HOSE
6mm ID x 3450mm
1шт.
2
KHJ11500
HYDRAULIC HOSE,6.35 mm ID x 3600.00 mm
6mm ID x 3600mm
1шт.
3
KHJ28690
ELBOW
ASSY, G3/8" x G1/4", Incl 4, 5
2шт.
4
150031A1
O-RING,10mm ID x 24mm OD
2шт.
5
NSS
NOT SOLD SEPARAT
90° Fitting, Incl in 3
2шт.
6
167666A1
FITTING
ASSY, G1/4" x G1/4" x G1/4", Incl 7, 8
2шт.
7
150960A1
O-RING,10.8mm ID x 2.4mm Width
2шт.
8
NSS
NOT SOLD SEPARAT
T Fitting, Incl in 6
2шт.
Выбрано товаров: 8
