(35.360.AF[01]) - VAR - 461863 - HYDRAULIC LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX500D LC (35.360.AF[01]) - VAR - 461863 - HYDRAULIC LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

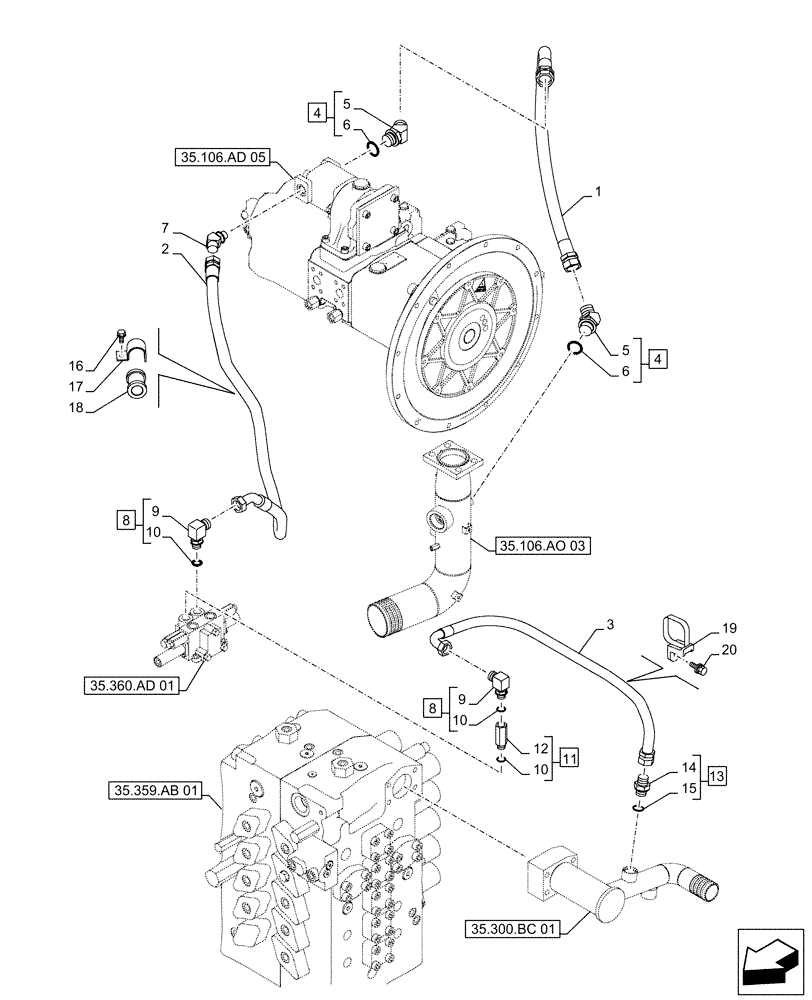

Схема запчастей Case CX500D LC - (35.360.AF[01]) - VAR - 461863 - HYDRAULIC LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
35.106.ao 03
20
18
1
2
12
15
19
6
5
4
10
9
4
3
14
7
17
8
16
10
9
8
6
10
13
11
5
35.300.bc 01
35.359.ab 01
35.106.ad 05
35.360.ad 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KSJ12940

HYDRAULIC HOSE

25mm ID x 910mm

1шт.

2

KTJ16030

HYDRAULIC HOSE

19mm ID x 1560mm

1шт.

3

KAJ3619

HYDRAULIC HOSE,19mm ID x 950mm L

1шт.

4

157587A1

ELBOW

ASSY, Incl 5 - 6

2шт.

5

NSS

NOT SOLD SEPARAT

45° Fitting, Incl in 4

2шт.

6

152211A1

O-RING

2шт.

7

163005A1

ELBOW

1шт.

8

168609A1

ELBOW

ASSY G1/2" x G3/4", Incl 9, 10 (Qty 1)

2шт.

9

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 8

2шт.

10

154487A1

O-RING

3шт.

11

KHJ1070

STUD

ASSY, Incl 10 (Qty 1), 12

1шт.

12

NSS

NOT SOLD SEPARAT

Fitting, Incl in 11

1шт.

13

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ASSY, Incl 14 - 15

1шт.

14

NSS

NOT SOLD SEPARAT

Fitting, Incl in 13

1шт.

15

150542A1

O-RING

1шт.

16

166052A1

BOLT

M10 x 25mm

2шт.

17

KHJ2025

CLAMP

2шт.

18

KHJ2023

HOSE CLAMP

2шт.

19

KHR2581

CLAMP

2шт.

20

KHJ1215

BOLT,Spcl

M8 x 25mm

2шт.
