(35.360.AD[01]) - VAR - 461863 - BUCKET, VALVE, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX500D LC (35.360.AD[01]) - VAR - 461863 - BUCKET, VALVE, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

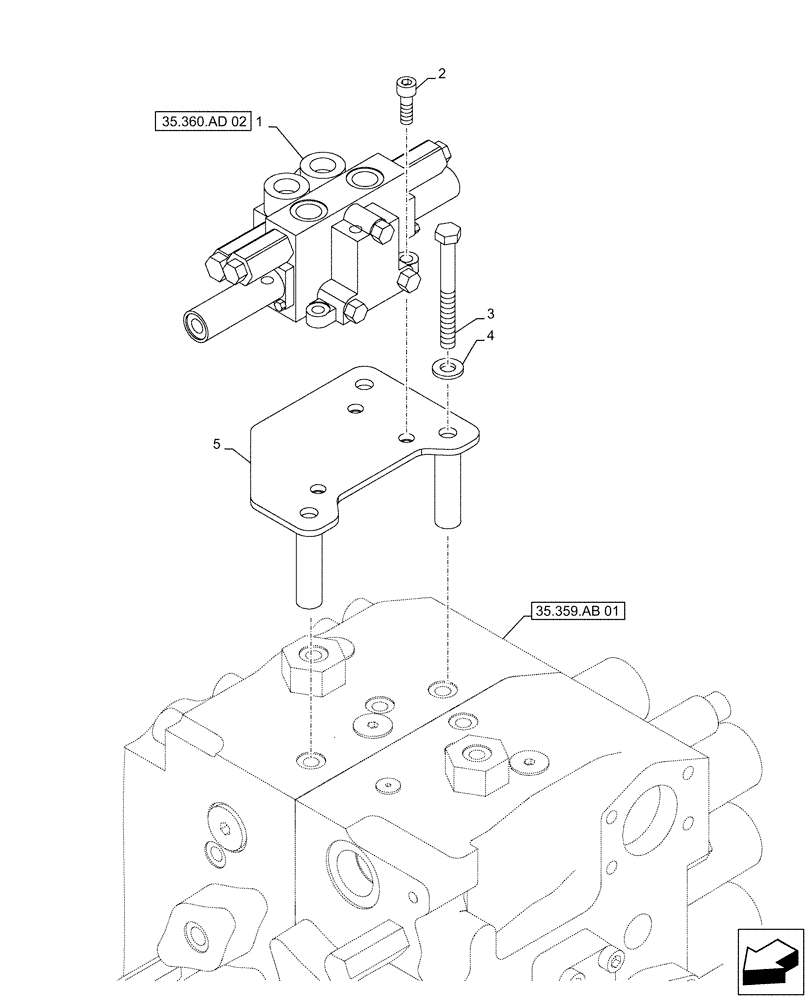

Схема запчастей Case CX500D LC - (35.360.AD[01]) - VAR - 461863 - BUCKET, VALVE, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
35.360.ad 02
4
1
5
3
2
35.359.ab 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

168709A1

VALVE SECTION

ASSY

1шт.

2

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

3шт.

3

827-12110

BOLT,Hex, M12 x 1.75 x 110mm, Cl 10.9

3шт.

4

150811A1

WASHER

3шт.

5

KTJ16200

BRACKET

1шт.
