(35.360.AB[11]) - VAR - 461869 - HAMMER CIRCUIT, LINES, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX500D LC (35.360.AB[11]) - VAR - 461869 - HAMMER CIRCUIT, LINES, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

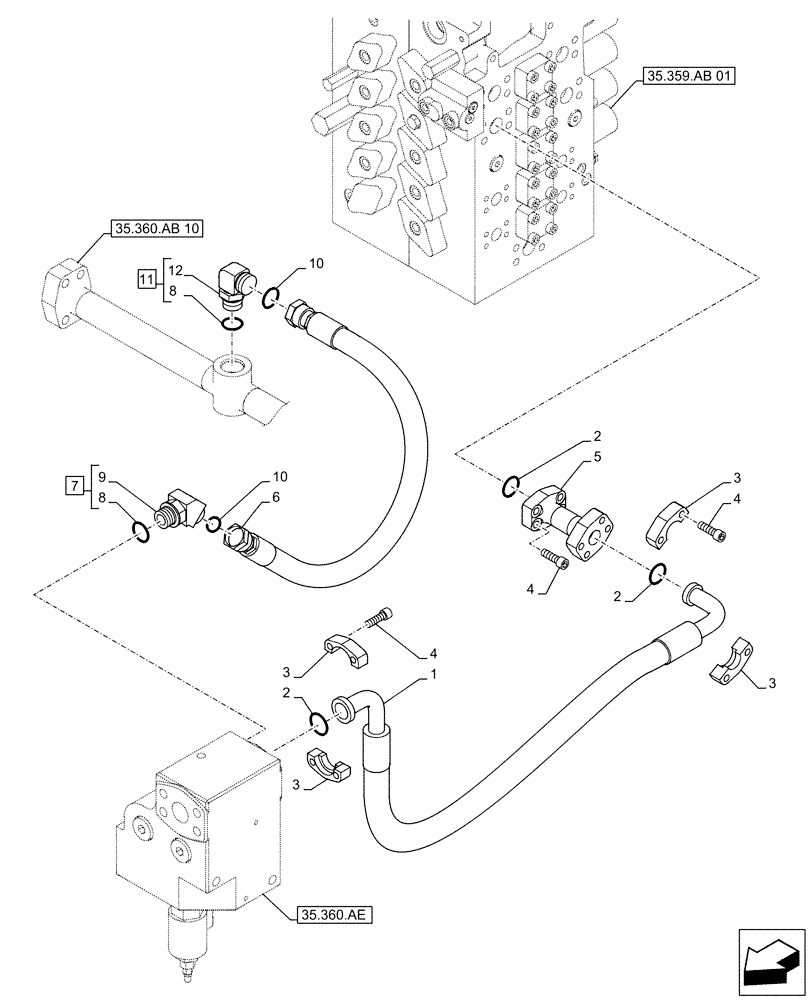

Схема запчастей Case CX500D LC - (35.360.AB[11]) - VAR - 461869 - HAMMER CIRCUIT, LINES, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
35.360.ae
9
3
7
3
3
10
6
2
4
12
5
8
1
10
4
2
4
2
8
3
11
35.359.ab 01
35.360.ab 10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KTJ16060

HYDRAULIC HOSE

32mm ID x 990mm

1шт.

2

153626A1

O-RING

3шт.

3

150124A1

FLANGE

4шт.

4

108R014Y045R

BOLT,Hex Skt, M14 x 45mm, Cl 12.9

12шт.

5

KTJ17110

PIPE

1шт.

6

KTJ16070

HYDRAULIC HOSE

25mm ID x 790mm

1шт.

7

KHJ11370

ELBOW

ASSY, Incl 8 (Qty 1), 9

1шт.

8

152211A1

O-RING

2шт.

9

NSS

NOT SOLD SEPARAT

45° Fitting, Incl in 7

1шт.

10

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

11

KHJ1805

ELBOW

ASSY, Incl 8 (Qty 1), 12

1шт.

12

NSS

NOT SOLD SEPARAT

1шт.
