(35.360.AB[09]) - VAR - 461869 - HAMMER CIRCUIT, LINES, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX500D LC (35.360.AB[09]) - VAR - 461869 - HAMMER CIRCUIT, LINES, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

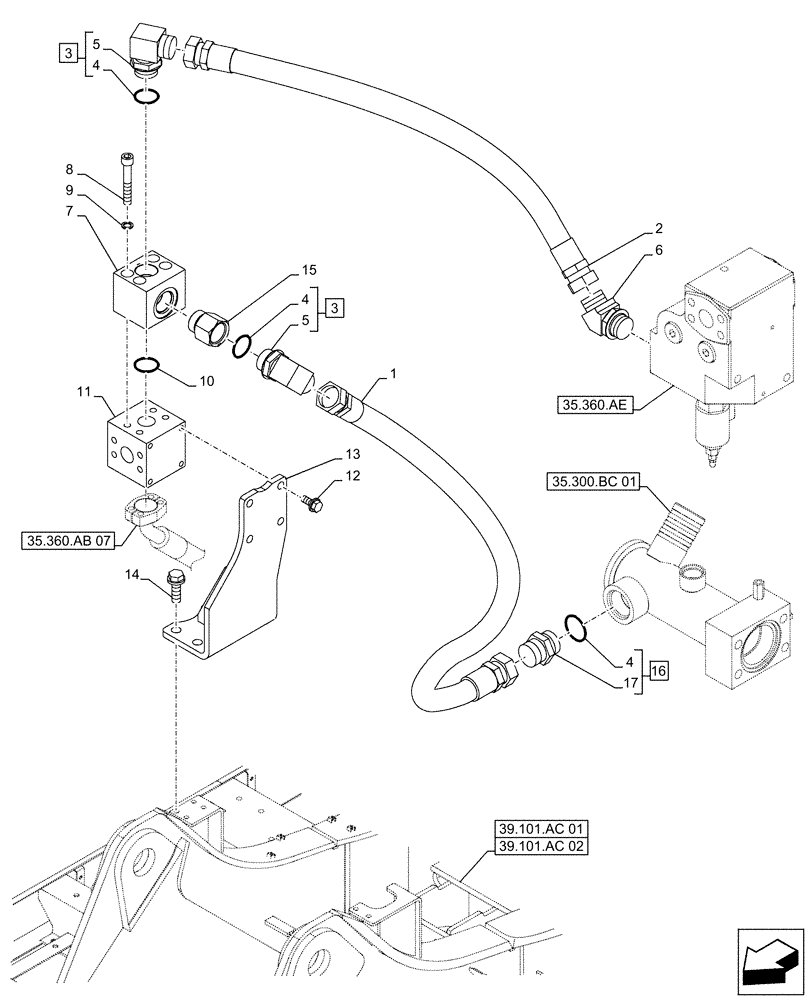

Схема запчастей Case CX500D LC - (35.360.AB[09]) - VAR - 461869 - HAMMER CIRCUIT, LINES, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
39.101.ac 01
13
11
5
7
1
2
10
3
8
4
14
5
9
4
15
17
3
6
12
4
39.101.ac 02
35.300.bc 01
35.360.ab 07
35.360.ae
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KTJ16090

HYDRAULIC HOSE

32mm ID x 880mm

1шт.

2

KTJ16080

HYDRAULIC HOSE

32mm ID x 820mm

1шт.

3

157582A1

ELBOW,90 Degree, 1 1/4" O-Ring x 1 1/4"

ASSY, G1 1/4" x G1 1/4", Incl 4 (Qty 1), 5

2шт.

4

150583A1

O-RING

3шт.

5

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 3

2шт.

6

157588A1

ELBOW

G1 1/4" x G1 1/4"

1шт.

7

162667A1

MANIFOLD

1шт.

8

862-14090

HEX SOC SCREW,M14 x 90mm, Cl 12.9

4шт.

9

184-014VR

SPRING WASHER

M14

4шт.

10

153626A1

O-RING

1шт.

11

KHJ17380

VALVE

1шт.

12

166352A1

BOLT

M12 x 30mm

4шт.

13

KTJ16100

BRACKET

1шт.

14

165929A1

BOLT,Sems, M16

M16 x 50mm

4шт.

15

KHJ33440

ADAPTER

G1 1/4" x G1 1/4"

1шт.

16

159047A1

ADAPTER

ASSY, Incl 4 (Qty 1), 17

1шт.

17

NSS

NOT SOLD SEPARAT

1шт.
