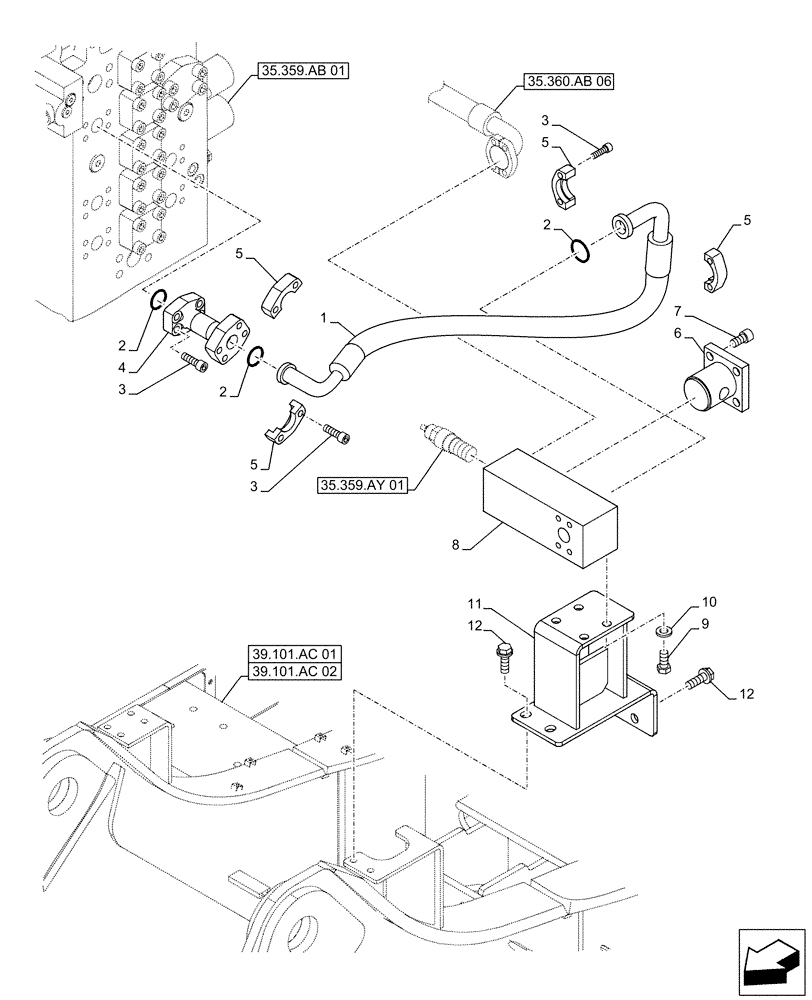

Запчасти Case CX500D LC (35.360.AB[08]) - VAR - 461868 - HAMMER CIRCUIT, LINES, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

KTJ16900

HYDRAULIC HOSE

32mm ID x 980mm

1шт.

2

153626A1

O-RING

3шт.

3

108R014Y045R

BOLT,Hex Skt, M14 x 45mm, Cl 12.9

12шт.

4

KTJ17110

PIPE

1шт.

5

150124A1

FLANGE

8шт.

6

KHJ17370

MANIFOLD VALVE

1шт.

7

862-16030

HEX SOC SCREW,M16 x 30mm, Cl 12.9

4шт.

8

KSJ2740

MANIFOLD

1шт.

9

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

4шт.

10

157548A1

WASHER

M16

4шт.

11

KTJ16620

BRACKET

1шт.

12

165929A1

BOLT,Sems, M16

M16 X 50mm

4шт.
