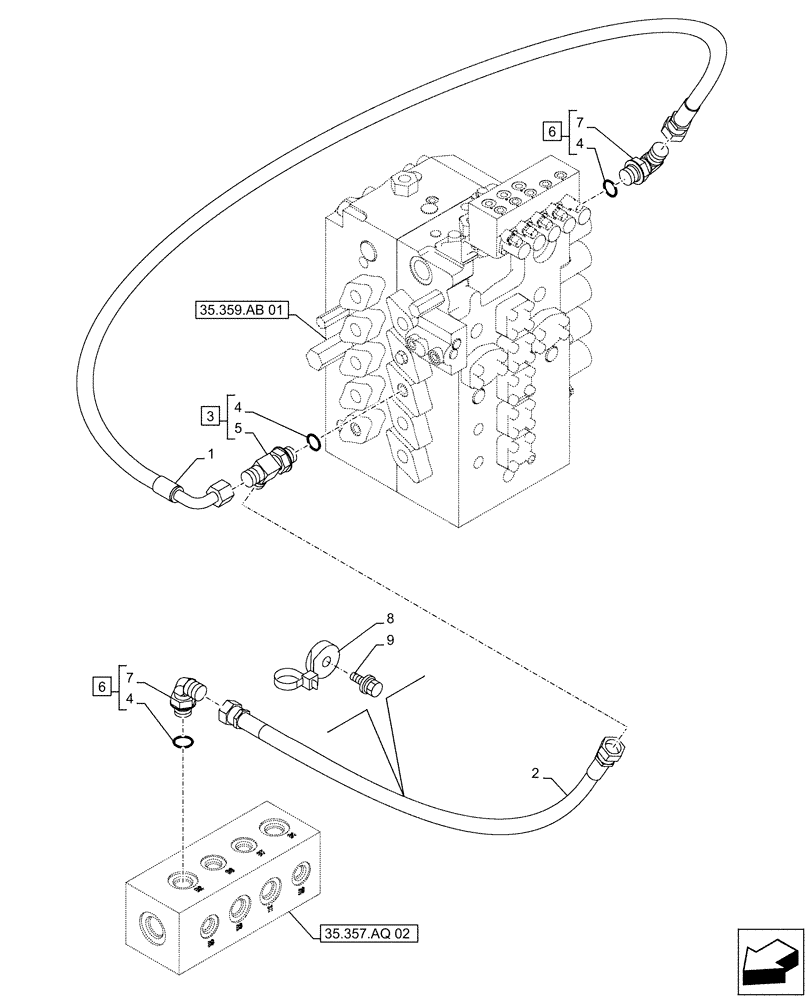

Запчасти Case CX500D LC (35.359.AE[02]) - CONTROL VALVE, LINE (35) - HYDRAULIC SYSTEMS

1

KHJ2037

HOSE

9mm ID x 1000mm

1шт.

2

KHJ19050

HYDRAULIC HOSE

9mm ID x 630mm, from Control Valve to Solenoid Valve

1шт.

3

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

ASSY, G3/8", Incl 4 (Qty 1), 5

1шт.

4

150031A1

O-RING,10mm ID x 24mm OD

3шт.

5

NSS

NOT SOLD SEPARAT

T Fitting, Incl in 3

1шт.

6

KHJ28590

ELBOW

ASSY, G3/8", Incl 4 (Qty 1), 7

2шт.

7

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 6

2шт.

8

KHR2584

CLAMP

1шт.

9

KHJ1215

BOLT,Spcl

M8 x 25mm

1шт.
