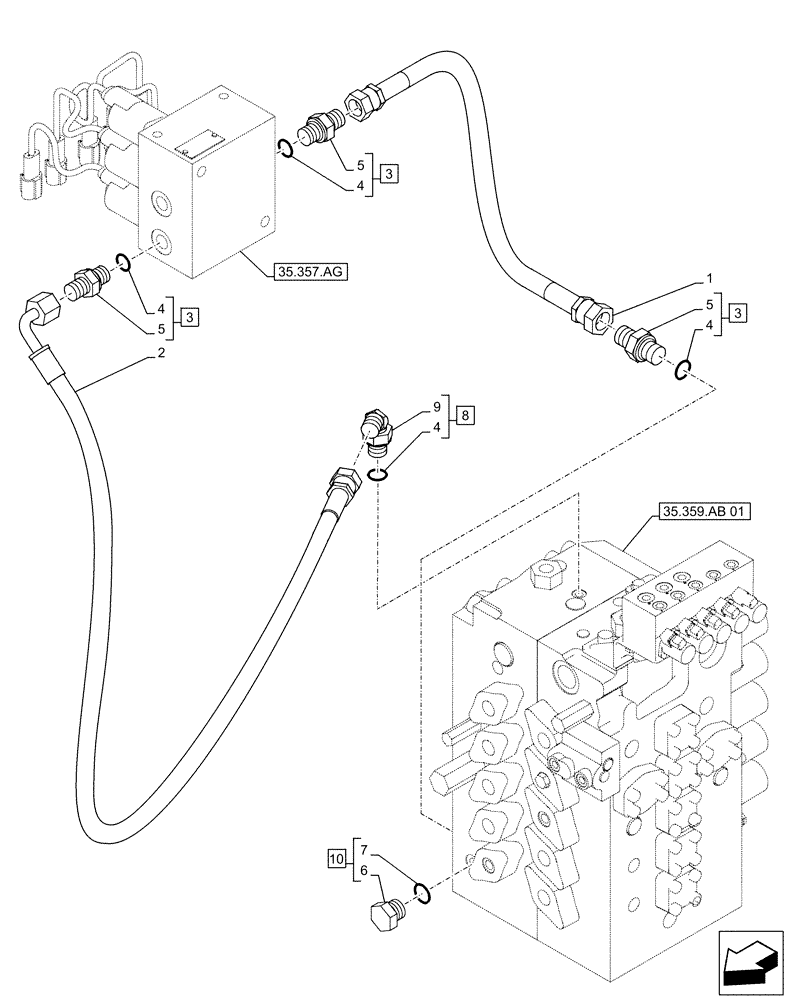

Запчасти Case CX500D LC (35.359.AE[01]) - CONTROL VALVE, LINE (35) - HYDRAULIC SYSTEMS

1

KHJ2525

HOSE

6mm ID x 2000mm, from Control Valve to Solenoid Valve

1шт.

2

KHJ20470

HOSE

6mm ID x 3050mm, from Control Valve to Solenoid Valve

1шт.

3

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, G1/4" x G1/4", Incl 4 (Qty 1), 5

3шт.

4

150960A1

O-RING,10.8mm ID x 2.4mm Width

4шт.

5

NSS

NOT SOLD SEPARAT

Fitting, Incl in 3

3шт.

6

NSS

NOT SOLD SEPARAT

Plug, Incl in 10

1шт.

7

150031A1

O-RING,10mm ID x 24mm OD

1шт.

8

KHJ28580

ELBOW

ASSY, G1/4" x G1/4", Incl 4 (Qty 1), 9

1шт.

9

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 8

1шт.

10

153105A1

PLUG

ASSY, G3/8", Incl 6, 7

1шт.
