Запчасти Case CX500D LC (35.359.AB[01]) - CONTROL VALVE, MOUNTING, BRACKET (35) - HYDRAULIC SYSTEMS

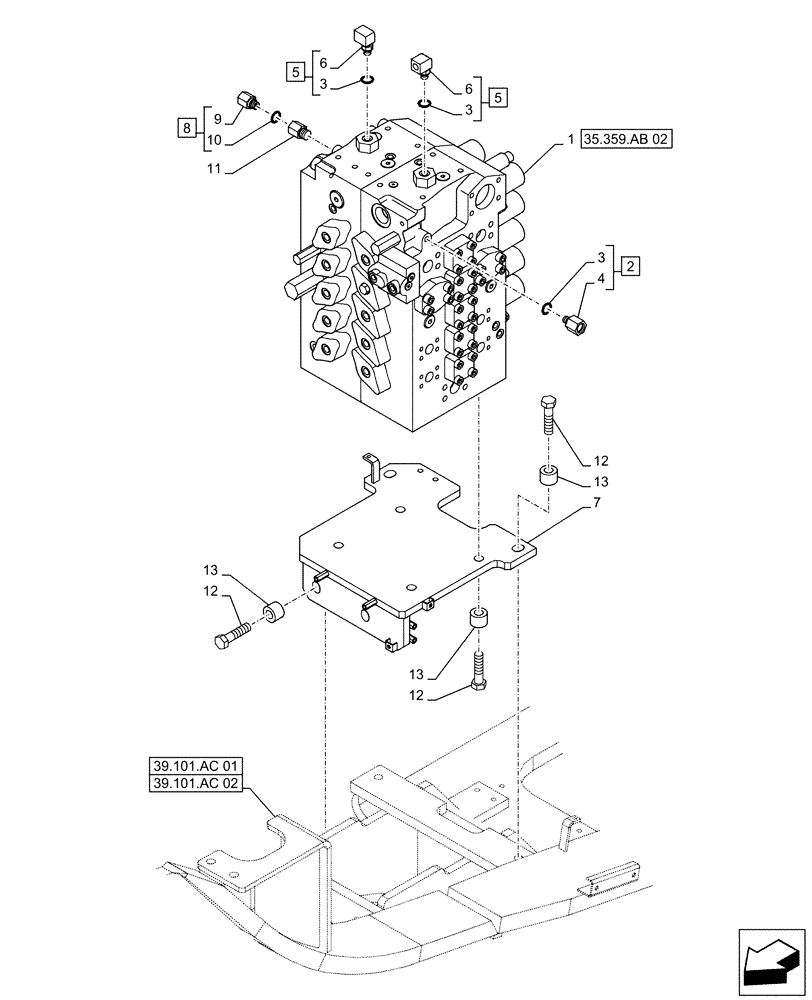

![Схема запчастей Case CX500D LC - (35.359.AB[01]) - CONTROL VALVE, MOUNTING, BRACKET (35) - HYDRAULIC SYSTEMS](https://partsell.ru/storage/images/casece/5392828.png)
39.101.ac 01
13
6
9
8
3
3
3
6
12
12
12
10
2
7
13
13
11
5
4
1
5
35.359.ab 02
39.101.ac 02
№
Артикул
Название
Примечание
Количество
1
KTJ15621
CONTROL VALVE
ASSY
1шт.
See also Figure 35.359.AB (02), 35.359.AB (03), 35.359.AB (04), 35.359.AB (05), 35.359.AB (06), 35.359.AY (03)
1шт.
2
KHJ18180
STUD
ASSY, G1/4" x M18, Incl 3 (Qty 1), 4
1шт.
3
150960A1
O-RING,10.8mm ID x 2.4mm Width
3шт.
4
NSS
NOT SOLD SEPARAT
Stud, Incl in 2
1шт.
5
KHJ0719
ELBOW
ASSY, G1/4" x G1/4", Incl 3 (Qty 1), 6
2шт.
6
NSS
NOT SOLD SEPARAT
Elbow, Incl in 5
2шт.
7
KTJ15860
BRACKET
1шт.
8
KHJ18190
STUD
ASSY, G3/8" x M18, Incl 9, 10
1шт.
9
NSS
NOT SOLD SEPARAT
Stud, Incl in 8
1шт.
10
150031A1
O-RING,10mm ID x 24mm OD
1шт.
11
KHV0307
ADAPTER
G3/8" x G1/2"
1шт.
12
827-20080
BOLT,Hex, M20 x 2.5 x 80mm, Cl 10.9
8шт.
13
166654A1
SPACER
8шт.
