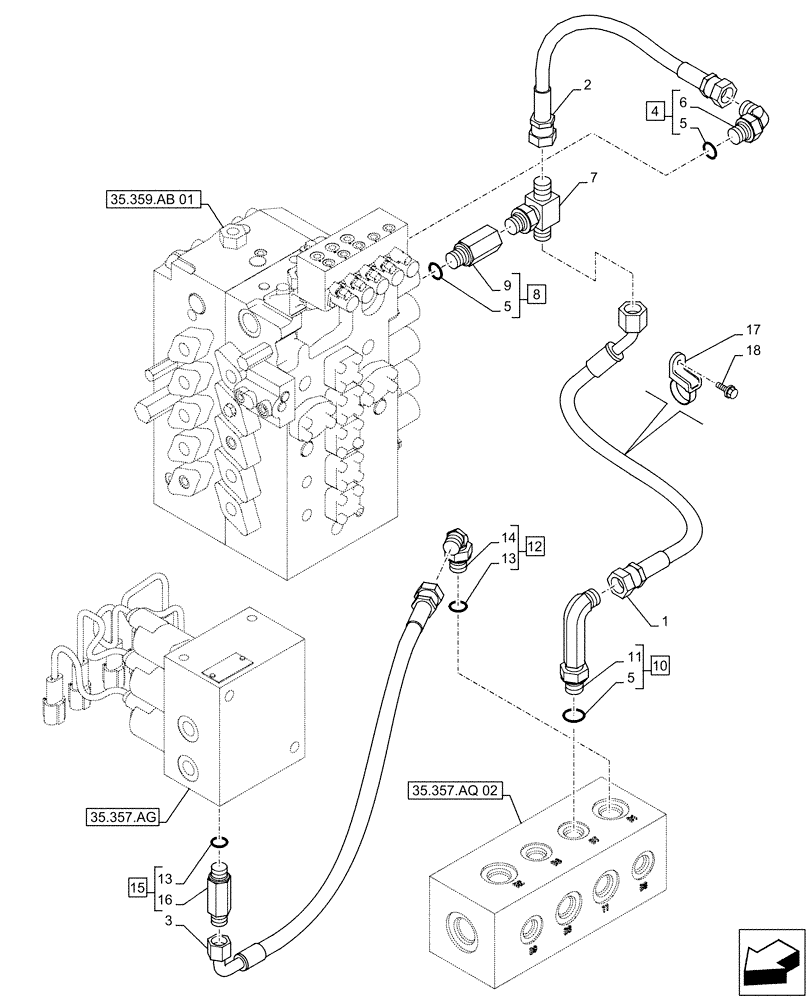

Запчасти Case CX500D LC (35.357.AR[02]) - PILOT VALVE, CONTROL VALVE LINE (35) - HYDRAULIC SYSTEMS

1

KHJ14660

HOSE

6mm ID x 700mm

1шт.

2

KHJ2045

HOSE

6mm ID x 370mm

1шт.

3

KHJ16260

HYDRAULIC HOSE,9.52 mm ID x 1750.00 mm

9mm ID x 1750mm, from Solenoid Valve to Manifold

1шт.

4

KHJ28580

ELBOW

ASSY, G1/4" x G1/4", Incl 5 (Qty 1), 6

1шт.

5

150960A1

O-RING,10.8mm ID x 2.4mm Width

3шт.

6

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 4

1шт.

7

167321A1

TEE

G1/4"

1шт.

8

162525A1

STUD

ASSY, G1/4" x G1/4", Incl 5 (Qty 1), 9

1шт.

9

NSS

NOT SOLD SEPARAT

Fitting, Incl in 8

1шт.

10

KHJ28810

ELBOW

ASSY, G1/4" x G1/4", Incl 5 (Qty 1), 11

1шт.

11

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 10

1шт.

12

KHJ28590

ELBOW

ASSY, G3/8" x G3/8", Incl 13 (Qty 1), 14

1шт.

13

150031A1

O-RING,10mm ID x 24mm OD

2шт.

14

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 12

1шт.

15

KAJ2351

FITTING

ASSY, G3/8" x G3/8", Incl 13 (Qty 1), 16

1шт.

16

NSS

NOT SOLD SEPARAT

Fitting, Incl in 15

1шт.

17

KHR2584

CLAMP

1шт.

18

KHJ1215

BOLT,Spcl

M8 x 25mm

1шт.
