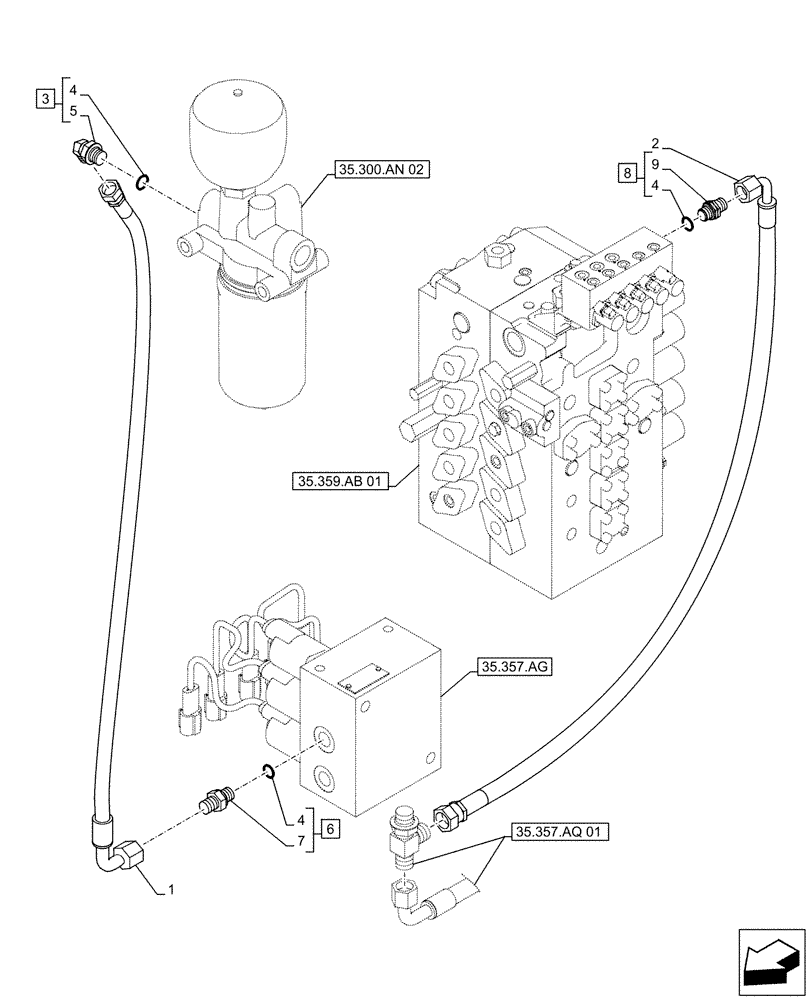

Запчасти Case CX500D LC (35.357.AR[01]) - PILOT VALVE, CONTROL VALVE LINE (35) - HYDRAULIC SYSTEMS

1

KHJ14120

HYDRAULIC HOSE,9.52 mm ID x 950.00 mm

9mm ID x 950mm, from Solenoid Valve to Oil Filter

1шт.

2

KHJ2135

HOSE

9mm ID x 2500mm, from Solenoid Valve to Control Valve

1шт.

3

KHJ28590

ELBOW

ASSY, G3/8" x G3/8", Incl 4 (Qty 1), 5

1шт.

4

150031A1

O-RING,10mm ID x 24mm OD

3шт.

5

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 3

1шт.

6

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, G3/8" x G3/8", Incl 4 (Qty 1), 7

1шт.

7

NSS

NOT SOLD SEPARAT

Fitting, Incl in 6

1шт.

8

KHJ1402

ADAPTER

ASSY, Incl 4 (Qty 1), 9

1шт.

9

NSS

NOT SOLD SEPARAT

Fitting, Incl in 8

1шт.
