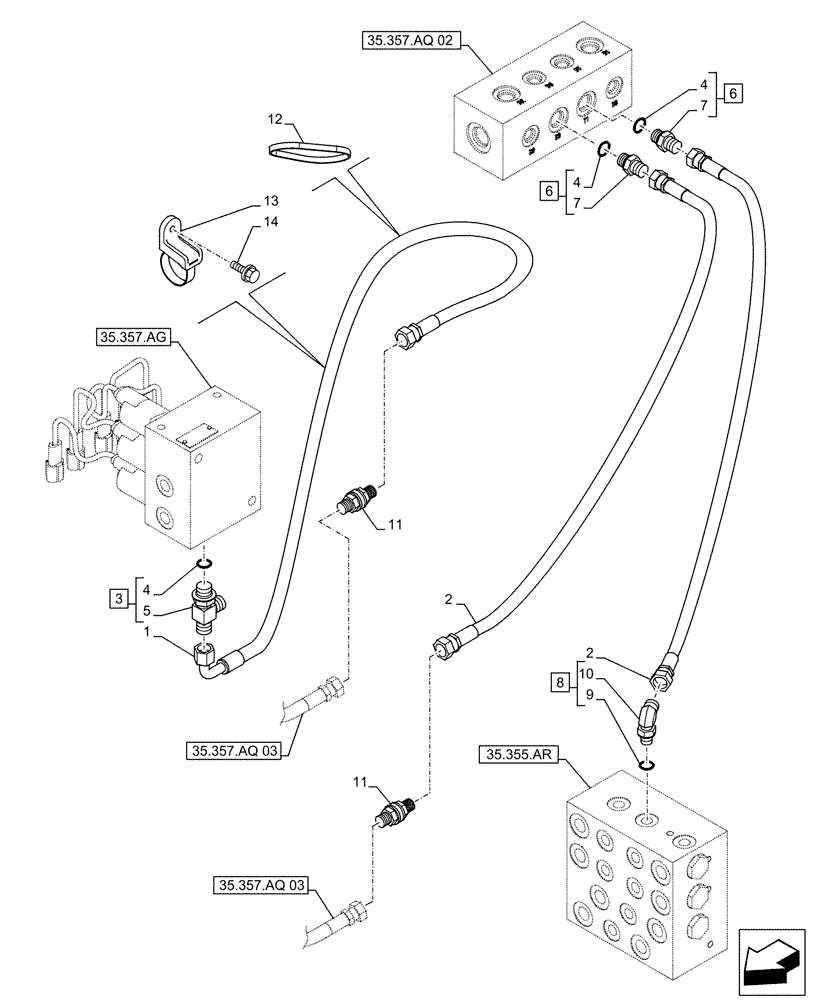

Запчасти Case CX500D LC (35.357.AQ[01]) - PILOT VALVE, DRAIN LINE (35) - HYDRAULIC SYSTEMS

1

KHJ21900

HYDRAULIC HOSE

9mm ID x 3150mm, from Solenoid Valve to Hydraulic Manifold

1шт.

2

KHJ2318

HOSE

9mm ID x 1400mm, from Manifold to Hydraulic Manifold

2шт.

3

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

ASSY, G3/8", Incl 4 (Qty 1), 5

1шт.

4

150031A1

O-RING,10mm ID x 24mm OD

3шт.

5

NSS

NOT SOLD SEPARAT

T Fitting, Incl in 3

1шт.

6

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, G3/8" x G3/8", Incl 4 (Qty 2), 7

2шт.

7

NSS

NOT SOLD SEPARAT

Fitting, Incl in 6

2шт.

8

KHJ28710

ELBOW

ASSY, G1/4" x G3/8", Incl 9, 10

1шт.

9

150960A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

10

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 8

1шт.

11

162826A1

ADAPTER

G3/8"

2шт.

12

150496A1

MOUNTING CLIP

250mm

3шт.

13

KHR2581

CLAMP

M8

1шт.

14

KHJ1215

BOLT,Spcl

M8 x 25mm

1шт.
