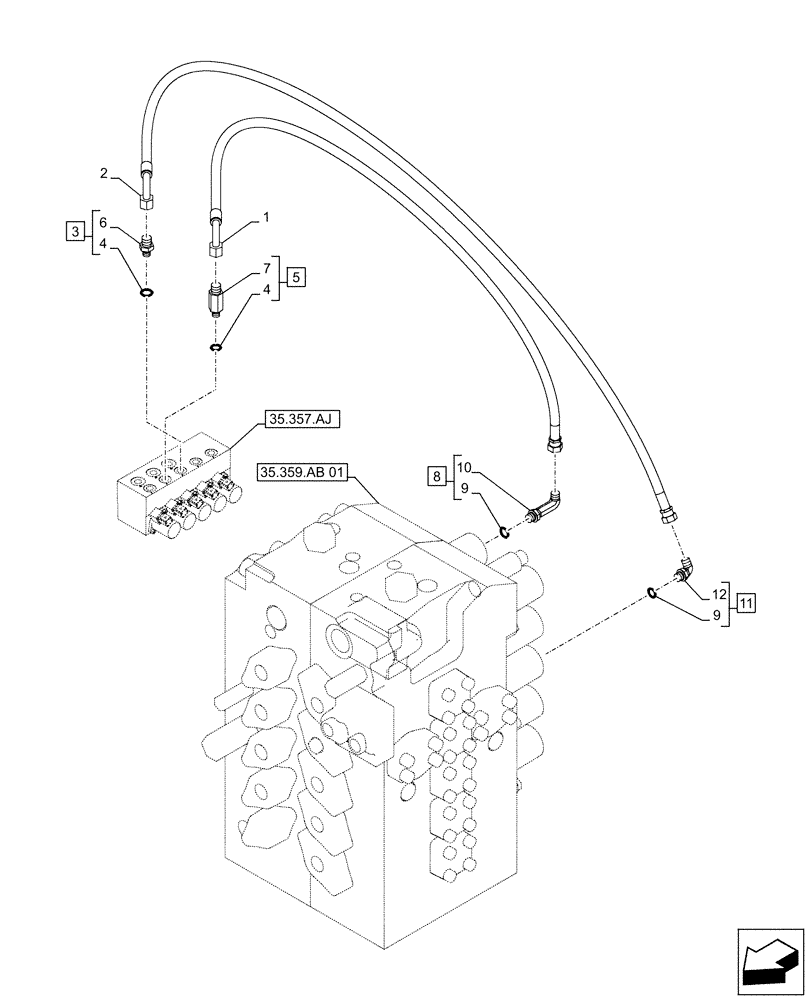

Запчасти Case CX500D LC (35.357.AO[03]) - STD + VAR - 461558 - MAIN, SOLENOID VALVE, PRESSURE PIPE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS

1

KHJ32470

HYDRAULIC HOSE

9mm ID x 720mm, from Solenoid Valve to Control Valve

1шт.

2

KHJ17850

HOSE

9mm ID x 850mm, from Solenoid Valve to Control Valve

1шт.

3

152747A1

ADAPTER

ASSY, G1/4" x G3/8", Incl 4 (Qty 1), 6

1шт.

4

150960A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

5

161173A1

ADAPTER

ASSY, G1/4" x G3/8", Incl 4 (Qty 1), 7

1шт.

6

NSS

NOT SOLD SEPARAT

Fitting, Incl in 3

1шт.

7

NSS

NOT SOLD SEPARAT

Fitting, Incl in 5

1шт.

8

KHJ28820

ELBOW

ASSY, G3/8" x G3/8", Incl 9 (Qty 1), 10

1шт.

9

150031A1

O-RING,10mm ID x 24mm OD

2шт.

10

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 8

1шт.

11

KHJ28590

ELBOW

ASSY, G3/8" x G3/8", Incl 9 (Qty 1), 12

1шт.

12

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 11

1шт.
