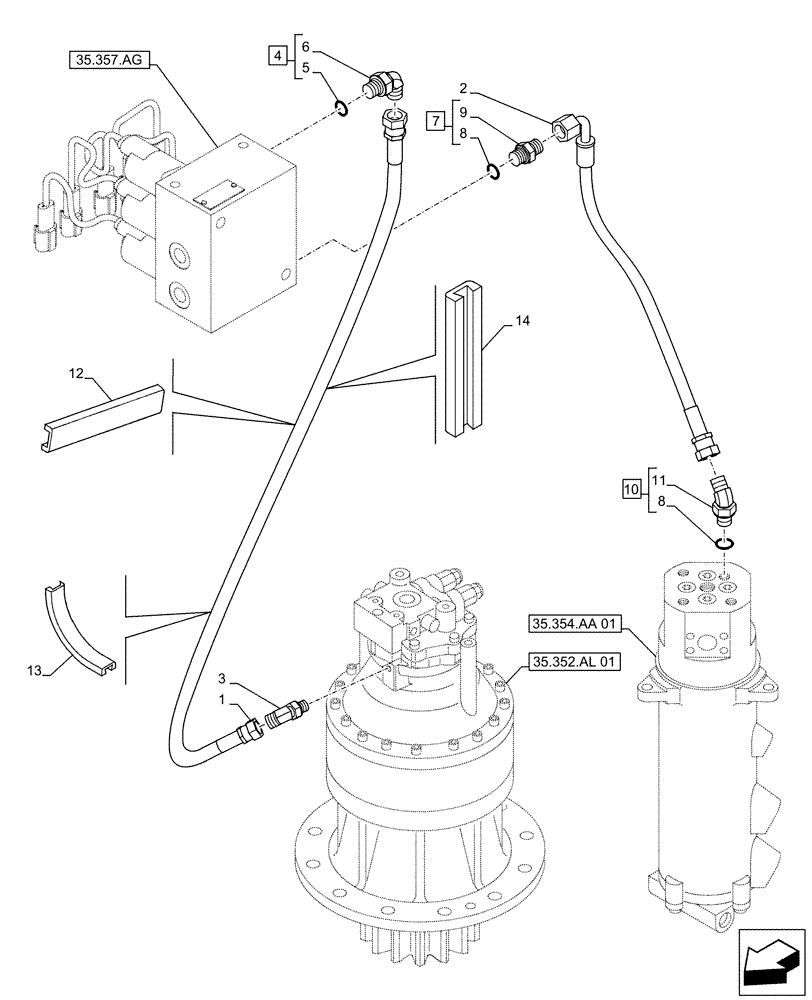

Запчасти Case CX500D LC (35.357.AO[01]) - MAIN, SOLENOID VALVE, PRESSURE PIPE (35) - HYDRAULIC SYSTEMS

1

KHJ20190

HYDRAULIC HOSE

9mm ID x 3400mm, from Pilot Valve to Moto-Reduction Gear

1шт.

2

KHJ18020

HOSE

6mm ID x 3550mm, from Pilot Valve to center Joint

1шт.

3

KHJ28750

ELBOW

G1/4" x G3/8"

1шт.

4

KHJ28590

ELBOW

ASSY, G3/8" x G3/8", Incl 5, 6

1шт.

5

150031A1

O-RING,10mm ID x 24mm OD

1шт.

6

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 4

1шт.

7

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 8 (Qty 1), 9

1шт.

8

150960A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

9

NSS

NOT SOLD SEPARAT

Fitting, Incl in 7

1шт.

10

KHJ28630

ELBOW

ASSY, G1/4" x G1/4", Incl 8 (Qty 1), 11

1шт.

11

NSS

NOT SOLD SEPARAT

45° Fitting, Incl in 10

1шт.

12

164689A1

GROMMET

230mm

1шт.

13

KAR1502

GROMMET

200mm

1шт.

14

163249A1

CUSHION

16mm X 150mm

1шт.
