(35.357.AD[02]) - PILOT VALVE, OIL LINE

Запчасти Case CX500D LC (35.357.AD[02]) - PILOT VALVE, OIL LINE (35) - HYDRAULIC SYSTEMS

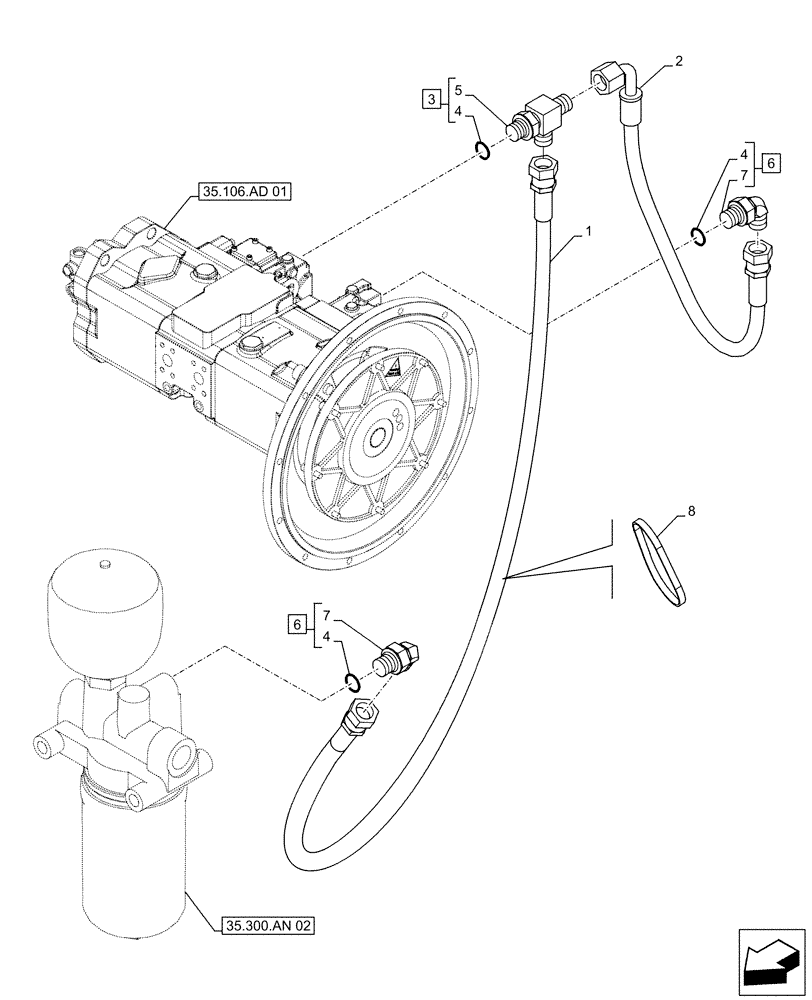

Схема запчастей Case CX500D LC - (35.357.AD[02]) - PILOT VALVE, OIL LINE (35) - HYDRAULIC SYSTEMS
35.300.an 02
7
4
6
5
4
4
7
6
2
1
8
3
35.106.ad 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ27640

HYDRAULIC HOSE

6mm ID x 920mm, from Oil Filter to Hydraulic Pump

1шт.

2

KHJ2342

HOSE

6mm ID x 380mm

1шт.

3

159497A1

TEE

ASSY, Incl 4 (Qty 1), 5

1шт.

4

150960A1

O-RING,10.8mm ID x 2.4mm Width

4шт.

5

NSS

NOT SOLD SEPARAT

T Fitting, Incl in 3

1шт.

6

KHJ28580

ELBOW

ASSY, Incl 4 (Qty 1), 7

2шт.

7

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 6

2шт.

8

150496A1

MOUNTING CLIP

250mm

1шт.
