(35.357.AD[01]) - PILOT VALVE, OIL LINE

Запчасти Case CX500D LC (35.357.AD[01]) - PILOT VALVE, OIL LINE (35) - HYDRAULIC SYSTEMS

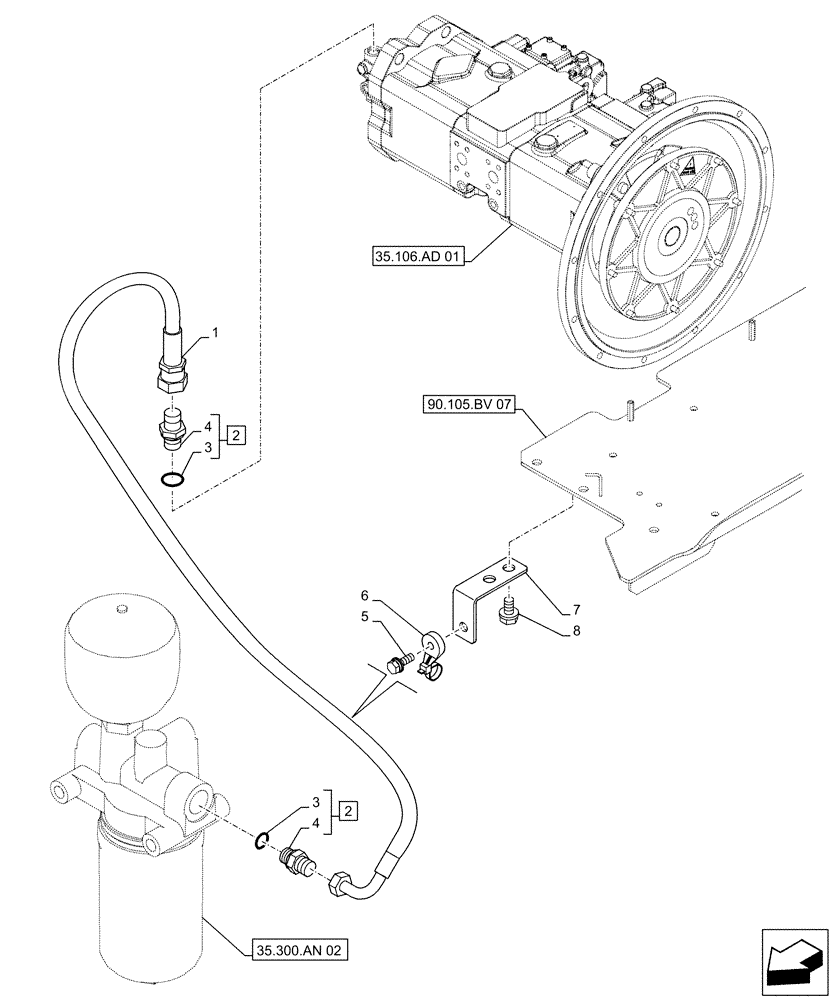

Схема запчастей Case CX500D LC - (35.357.AD[01]) - PILOT VALVE, OIL LINE (35) - HYDRAULIC SYSTEMS
35.300.an 02
3
2
4
8
7
5
3
4
1
2
6
35.106.ad 01
90.105.bv 07
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KSJ2569

HOSE ASSY.,12.70 mm ID x 850.00 mm

from Oil Filter to Hydraulic Pum

1шт.

2

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

ASSY, G1/2" x G1/2", Incl 3, 4

2шт.

3

150539A1

O-RING

2шт.

4

NSS

NOT SOLD SEPARAT

Fitting, Incl in 2

2шт.

5

KHJ1215

BOLT,Spcl

M8 x 25mm

3шт.

6

KHR2584

CLAMP

M8

3шт.

7

KTH14320

BRACKET

1шт.

8

166351A1

BOLT,Sems, M10 x 20mm

2шт.
