(35.356.AR[07]) - VAR - 461558 - PEDAL, DRAIN LINE, CONTROL PATTERN SELECTION

Запчасти Case CX500D LC (35.356.AR[07]) - VAR - 461558 - PEDAL, DRAIN LINE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS

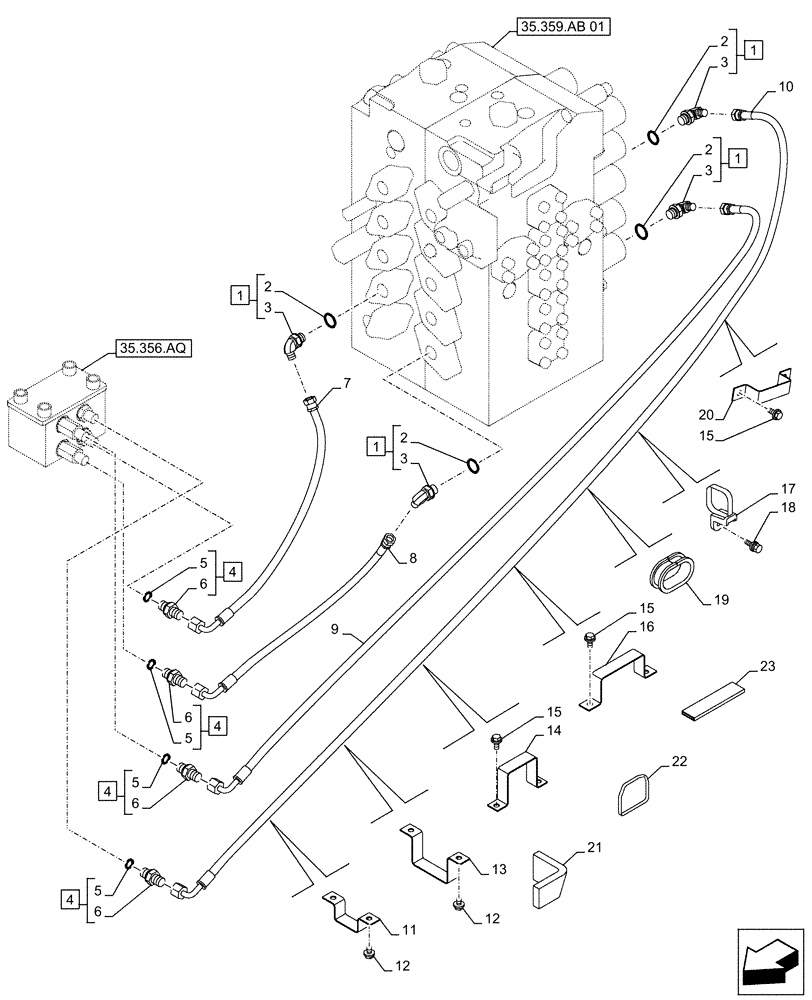

Схема запчастей Case CX500D LC - (35.356.AR[07]) - VAR - 461558 - PEDAL, DRAIN LINE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS
35.356.aq
10
4
5
6
9
5
11
4
12
2
3
19
15
5
8
1
6
17
5
22
6
3
4
1
18
20
2
15
2
14
16
7
1
21
4
6
3
13
23
1
2
12
3
15
35.359.ab 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ28690

ELBOW

ASSY, G3/8" x G1/4", Incl 2, 3

4шт.

2

150031A1

O-RING,10mm ID x 24mm OD

4шт.

3

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 1

4шт.

4

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, G1/4" x G1/4", Incl 4, 5

4шт.

5

150960A1

O-RING,10.8mm ID x 2.4mm Width

4шт.

6

NSS

NOT SOLD SEPARAT

Fitting, Incl in 4

4шт.

7

KHJ2165

HOSE

6mm ID x 2900mm, from Pedal Maifold Valve to Control Valve

1шт.

8

KHJ2167

HOSE

6mm ID x 2800mm, from Pedal Maifold Valve to Control Valve

1шт.

9

KHJ13650

HYDRAULIC HOSE

6mm ID x 3200mm, from Pedal Maifold Valve to Control Valve

1шт.

10

KHJ25060

HOSE ASSY.

6mm ID x 3250mm, from Pedal Maifold Valve to Control Valve

1шт.

11

KHJ13770

COLLAR

1шт.

12

166345A1

BOLT

M8 x 16mm

4шт.

13

KHJ24020

CLAMP

1шт.

14

161095A1

CLAMP

1шт.

15

166350A1

BOLT

M8 x 20mm

6шт.

16

159036A1

CLAMP

1шт.

17

KHR2581

CLAMP

3шт.

18

KHJ1215

BOLT,Spcl

M8 x 25mm

3шт.

19

163732A1

GROMMET

1шт.

20

159034A1

CLAMP

1шт.

21

KHJ1764

SEAL

10mm

1шт.

22

150498A1

MOUNTING CLIP

300mm

7шт.

23

159028A1

RUBBER BLOCK

1шт.
