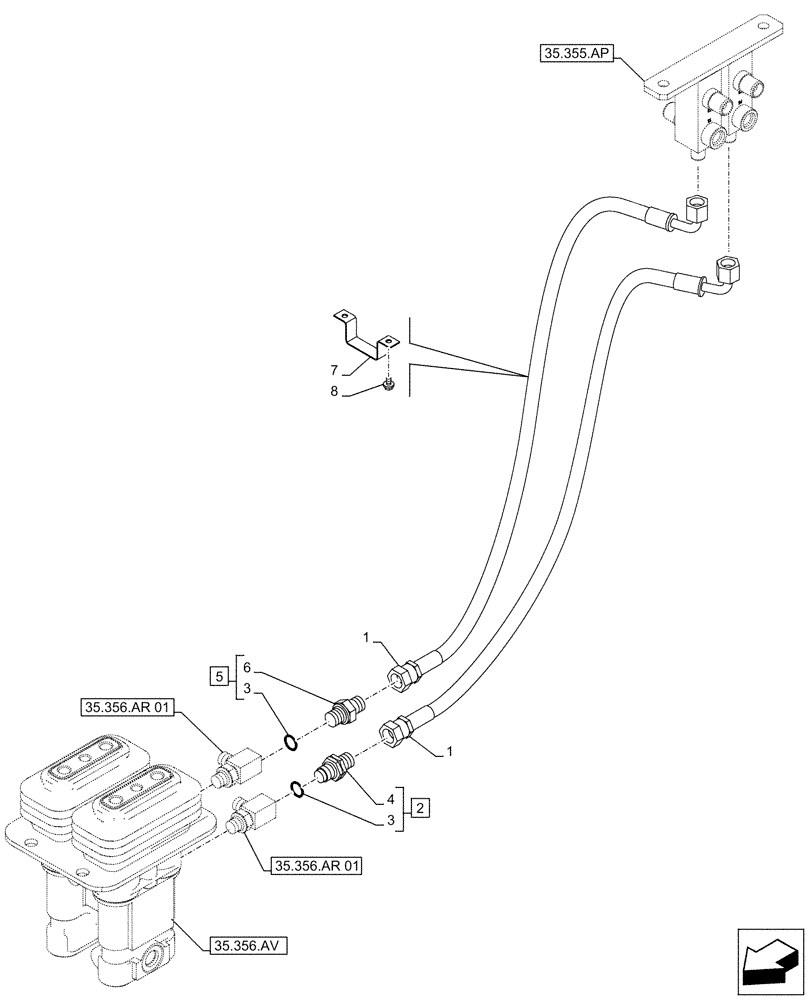

Запчасти Case CX500D LC (35.356.AR[06]) - VAR - 461558 - PEDAL, DRAIN LINE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS

1

KHJ2092

HOSE

6mm ID x 1100mm, from Foot Control Valve to Hydraulic Manifold

2шт.

2

161841A1

HYD CONNECTOR

ASSY, G1/4" x G1/4", Incl 3 (Qty 1), 4

1шт.

3

150960A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

4

NSS

NOT SOLD SEPARAT

Fitting, Incl in 2

1шт.

5

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, G1/4" x G1/4", Incl 3 (Qty 1), 6

1шт.

6

NSS

NOT SOLD SEPARAT

Fitting, Incl in 5

1шт.

7

KHJ1220

COLLAR

2шт.

8

166345A1

BOLT

M8 x 16mm

4шт.
