(35.356.AR[05]) - PEDAL, DRAIN LINE

Запчасти Case CX500D LC (35.356.AR[05]) - PEDAL, DRAIN LINE (35) - HYDRAULIC SYSTEMS

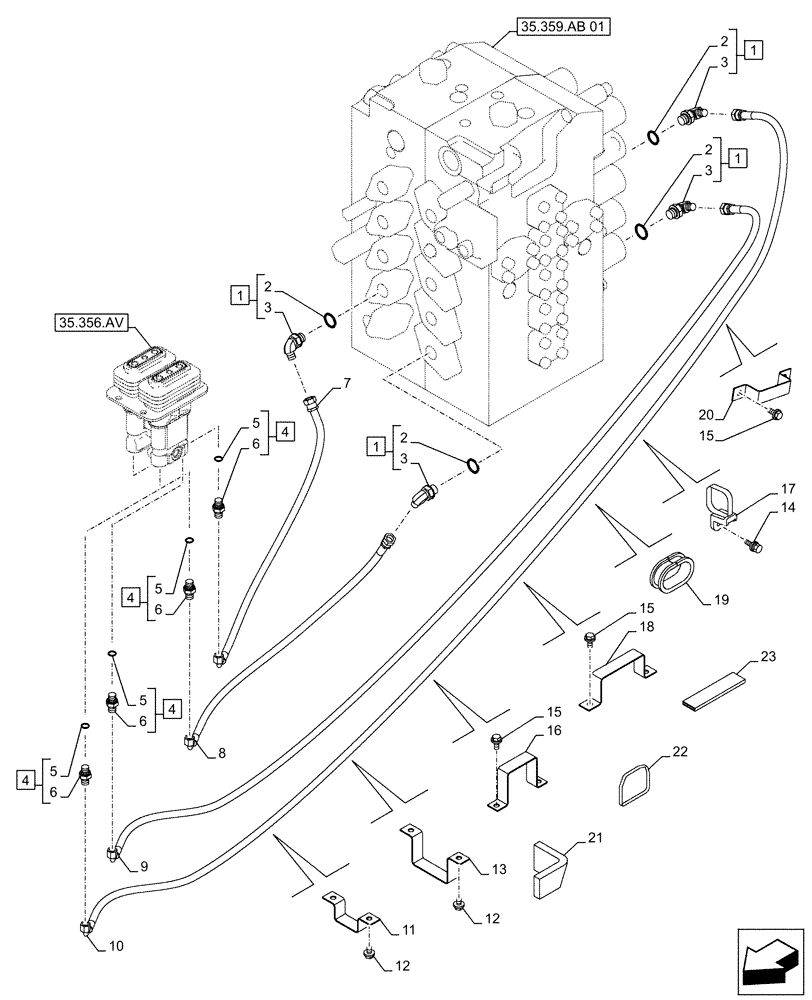

Схема запчастей Case CX500D LC - (35.356.AR[05]) - PEDAL, DRAIN LINE (35) - HYDRAULIC SYSTEMS
1
7
1
16
12
3
5
4
23
2
4
6
6
3
18
1
20
15
4
15
2
21
6
17
1
9
13
5
14
15
5
3
3
22
2
10
12
5
8
4
11
19
35.359.ab 01
35.356.av
6
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ28690

ELBOW

ASSY, G3/8" x G1/4", Incl 2, 3

4шт.

2

150031A1

O-RING,10mm ID x 24mm OD

4шт.

3

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 1

4шт.

4

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, G1/4" x G1/4", Incl 5, 6

4шт.

5

150960A1

O-RING,10.8mm ID x 2.4mm Width

4шт.

6

NSS

NOT SOLD SEPARAT

Fitting, Incl in 4

4шт.

7

KHJ2165

HOSE

6mm ID x 2900mm, from Foot Control Valve to Control Valve

1шт.

8

KHJ2167

HOSE

6mm ID x 2800mm, from Foot Control Valve to Control Valve

1шт.

9

KHJ13650

HYDRAULIC HOSE

6mm ID x 3500mm, from Foot Control Valve to Control Valve

1шт.

10

KHJ25060

HOSE ASSY.

6mm ID x 3250mm, from Foot Control Valve to Control Valve

1шт.

11

KHJ1220

COLLAR

2шт.

12

166345A1

BOLT

M8 x 16mm

2шт.

13

KHJ24020

CLAMP

2шт.

14

KHJ1215

BOLT,Spcl

M8 x 25mm

1шт.

15

166350A1

BOLT

M8 x 20mm

2шт.

16

161095A1

CLAMP

1шт.

17

KHR2581

CLAMP

1шт.

18

159036A1

CLAMP

1шт.

19

163732A1

GROMMET

1шт.

20

159034A1

CLAMP

1шт.

21

KHJ1764

SEAL

10mm

1шт.

22

150498A1

MOUNTING CLIP

300mm

7шт.

23

159028A1

RUBBER BLOCK

1шт.
