(35.356.AR[04]) - PEDAL, DRAIN LINE

Запчасти Case CX500D LC (35.356.AR[04]) - PEDAL, DRAIN LINE (35) - HYDRAULIC SYSTEMS

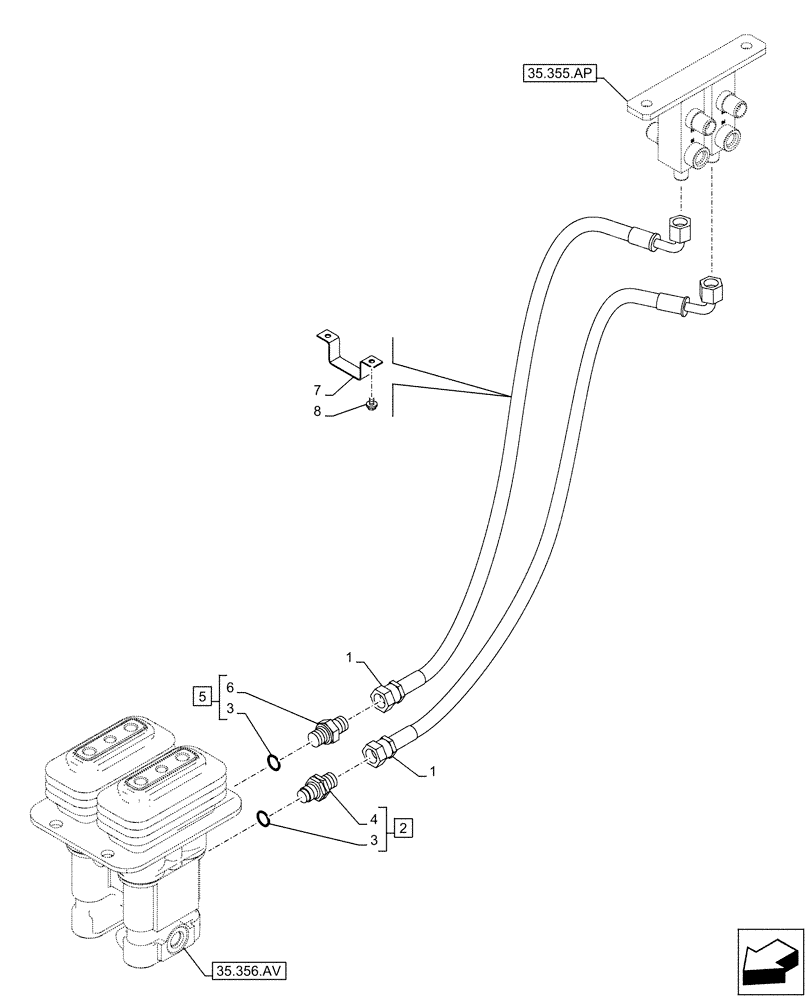

Схема запчастей Case CX500D LC - (35.356.AR[04]) - PEDAL, DRAIN LINE (35) - HYDRAULIC SYSTEMS
8
3
1
1
7
5
4
3
2
6
35.355.ap
35.356.av
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ2092

HOSE

6mm ID x 1100mm, from Foot Control Valve to Hydraulic Manifold

2шт.

2

161841A1

HYD CONNECTOR

ASSY, G1/4" x G1/4", Incl 3 (Qty 1), 4

1шт.

3

150960A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

4

NSS

NOT SOLD SEPARAT

Fitting, Incl in 2

1шт.

5

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, G1/4" x G1/4", Incl 3 (Qty 1), 6

1шт.

6

NSS

NOT SOLD SEPARAT

Fitting, Incl in 5

1шт.

7

KHJ13770

COLLAR

2шт.

8

166345A1

BOLT

M8 x 16mm

4шт.
