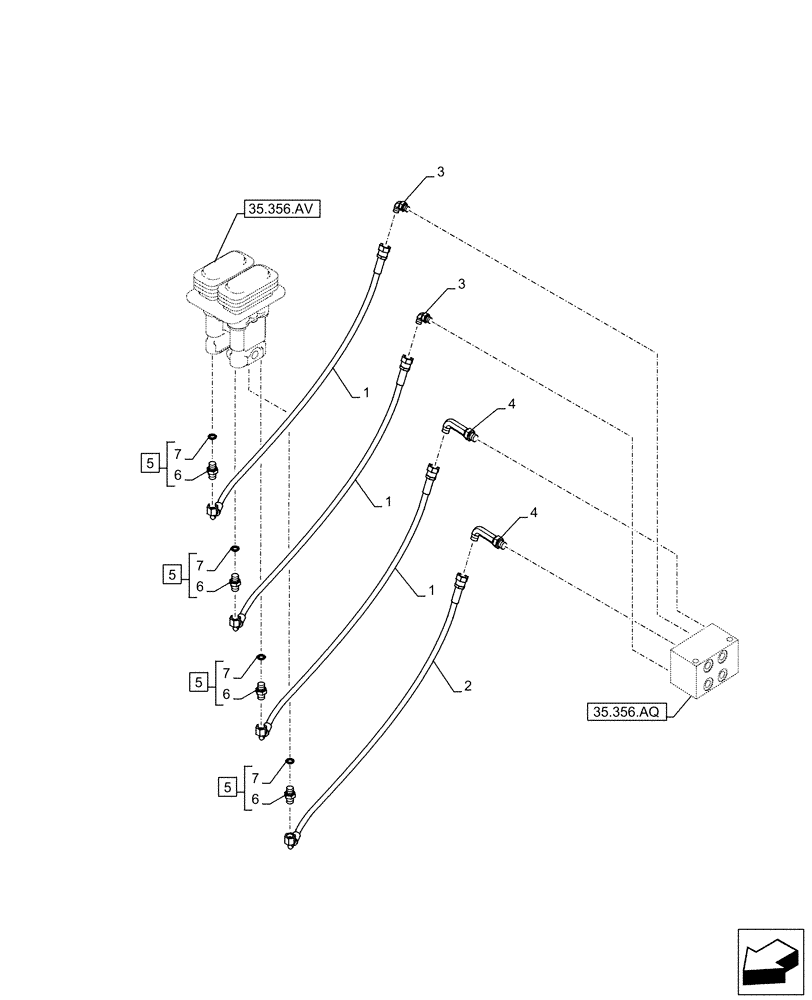

Запчасти Case CX500D LC (35.356.AR[02]) - PEDAL, DRAIN LINE (35) - HYDRAULIC SYSTEMS

1

KHJ2180

HOSE,6.3mm ID x 500mm L

6mm ID x 500mm, from Foot Control Valve to Pedal Manifold Valve

3шт.

2

KHJ2239

HOSE,520.00 mm

6mm ID x 520mm, from Foot Control Valve to Pedal Manifold Valve

1шт.

3

KHJ28580

ELBOW

G1/4" x G1/4"

2шт.

4

KHJ28810

ELBOW

G1/4" x G1/4"

2шт.

5

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, G1/4" x G1/4", Incl 6 - 7

4шт.

6

NSS

NOT SOLD SEPARAT

Fitting, Incl in 5

4шт.

7

150960A1

O-RING,10.8mm ID x 2.4mm Width

4шт.
