Запчасти Case CX500D LC (35.356.AK[02]) - PEDAL, CONTROL (35) - HYDRAULIC SYSTEMS

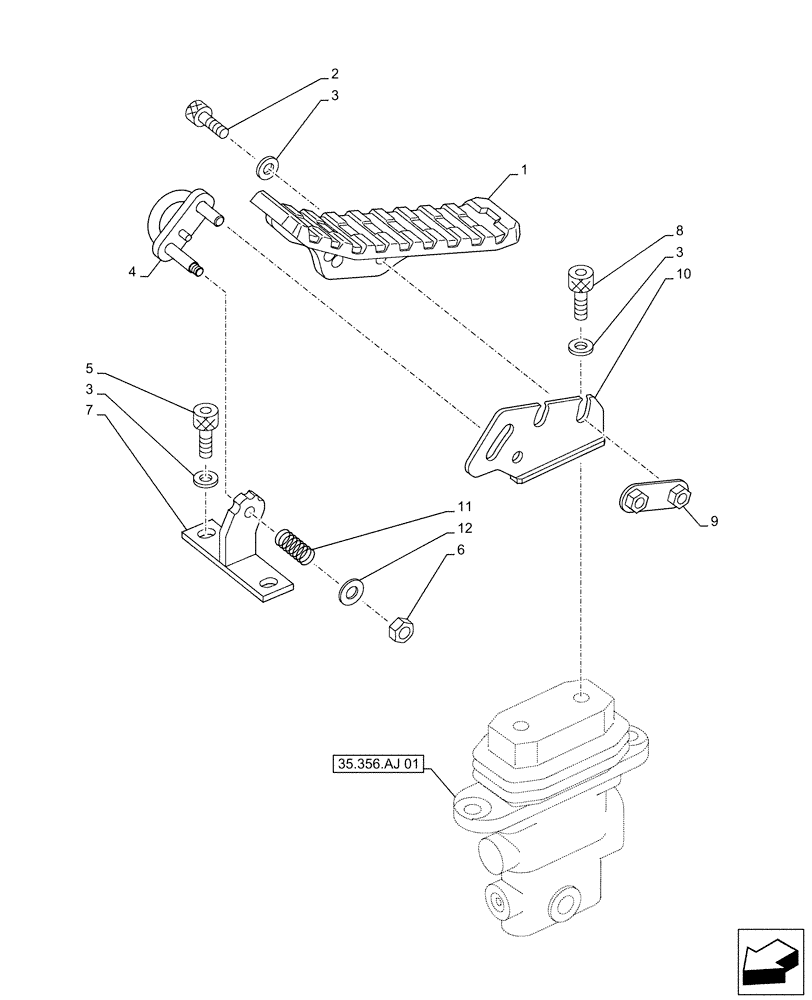

![Схема запчастей Case CX500D LC - (35.356.AK[02]) - PEDAL, CONTROL (35) - HYDRAULIC SYSTEMS](https://partsell.ru/storage/images/casece/5394503.png)
35.356.aj 01
4
8
1
3
10
9
7
12
5
3
6
3
2
11
1
KHJ13850
PEDAL
1шт.
2
KHJ24800
BOLT
M10 x 30mm
2шт.
3
150604A1
WASHER
6шт.
4
KHJ10701
ARRESTER
1шт.
5
108R010Y016R
BOLT
M10 x 6mm
2шт.
6
157740A1
NUT
1шт.
7
KHJ10711
SUPPORT
1шт.
8
165404A1
BOLT,Hex Skt, M10 x 20mm
2шт.
9
KHJ24780
BRACKET, SUPPORTING
1шт.
10
KHJ24740B1
SUPPORT
1шт.
11
KHJ10721
SPRING
1шт.
12
159500A1
WASHER
1шт.
