(35.355.AR) - STD + VAR - 461558 - JOYSTICK, CUSHION VALVE, CONTROL PATTERN SELECTION

Запчасти Case CX500D LC (35.355.AR) - STD + VAR - 461558 - JOYSTICK, CUSHION VALVE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS

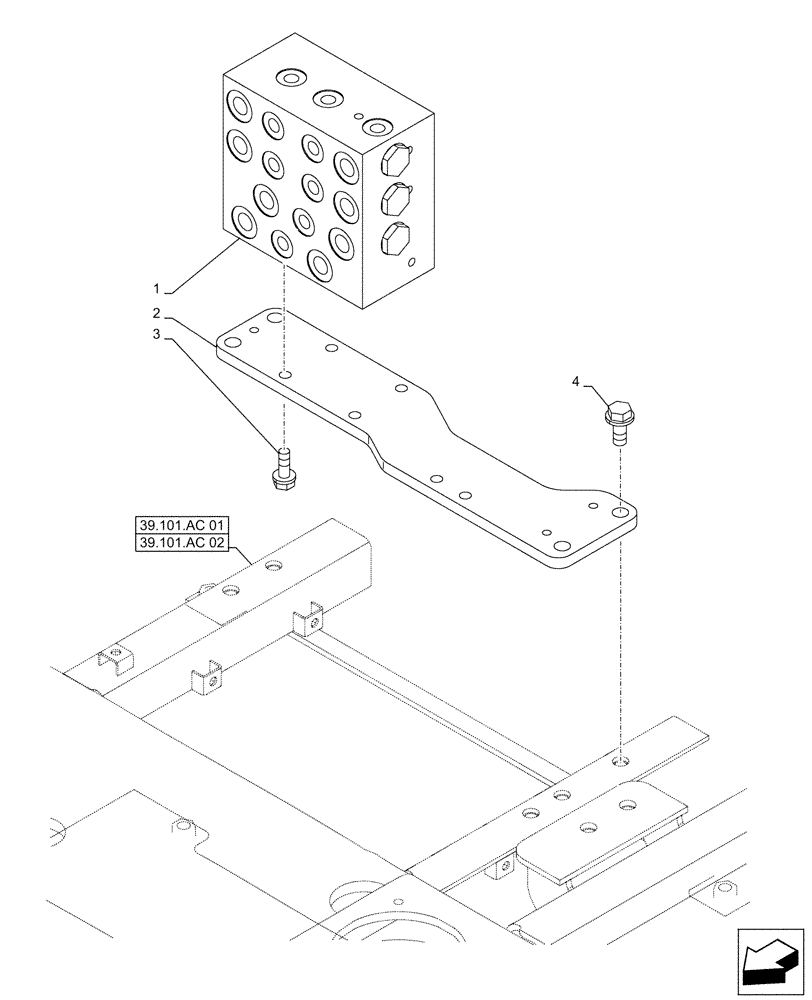

Схема запчастей Case CX500D LC - (35.355.AR) - STD + VAR - 461558 - JOYSTICK, CUSHION VALVE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS
39.101.ac 02
3
4
1
2
39.101.ac 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KTJ15681

VALVE

1шт.

2

KHJ24480

BRACKET, SUPPORTING

1шт.

3

166347A1

BOLT,Sems, M10 x 30mm

4шт.

4

166352A1

BOLT

M12 x 30mm

4шт.
