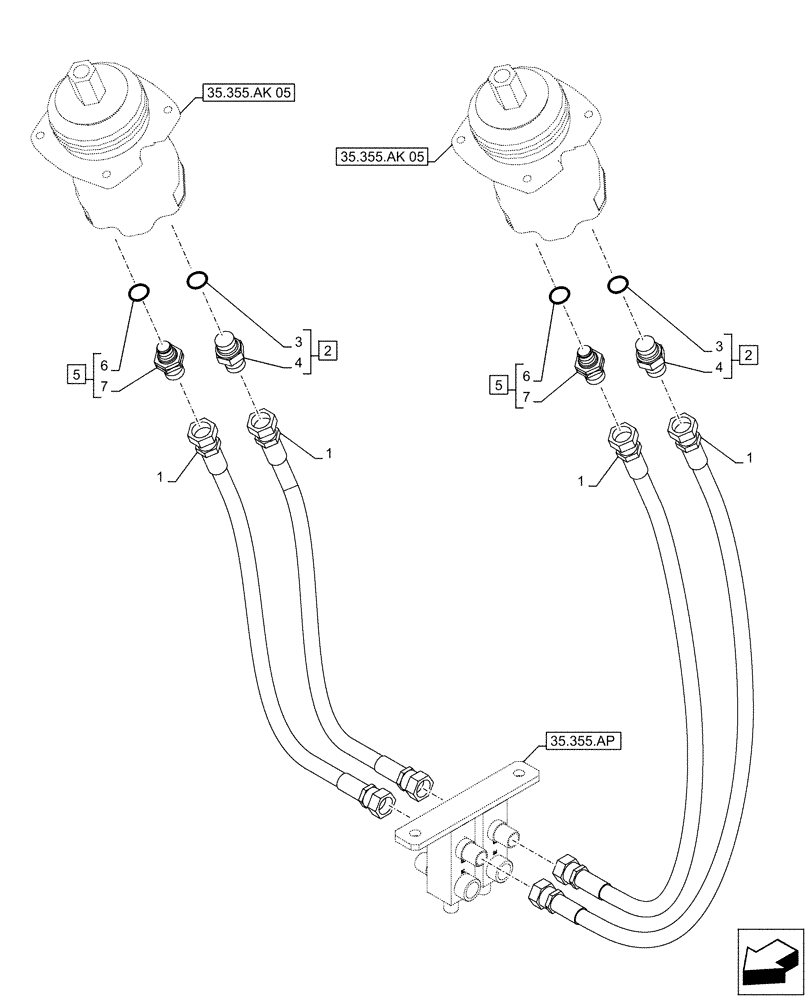

Запчасти Case CX500D LC (35.355.AO) - STD + VAR - 461558 - JOYSTICK, DRAIN LINE, BLOCK, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS
35.355.ap
3
4
7
7
3
5
2
1
6
1
6
5
4
2
1
35.355.ak 05
35.355.ak 05
1
FIT
1:1
100%
№
Артикул
Название
Примечание
Количество
1
159213A1
HYDRAULIC HOSE
9mm ID x 1150mm, from Valve Remote Control to Hydraulic Manifold
4шт.
2
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
ASSY, G3/8" x G3/8", Incl 3, 4
2шт.
5
161842A1
ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB
ASSY, G1/4" x G3/8", Incl 6, 7
2шт.
