(35.355.AC[08]) - VAR - 461558 - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE, CONTROL PATTERN SELECTION

Запчасти Case CX500D LC (35.355.AC[08]) - VAR - 461558 - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS

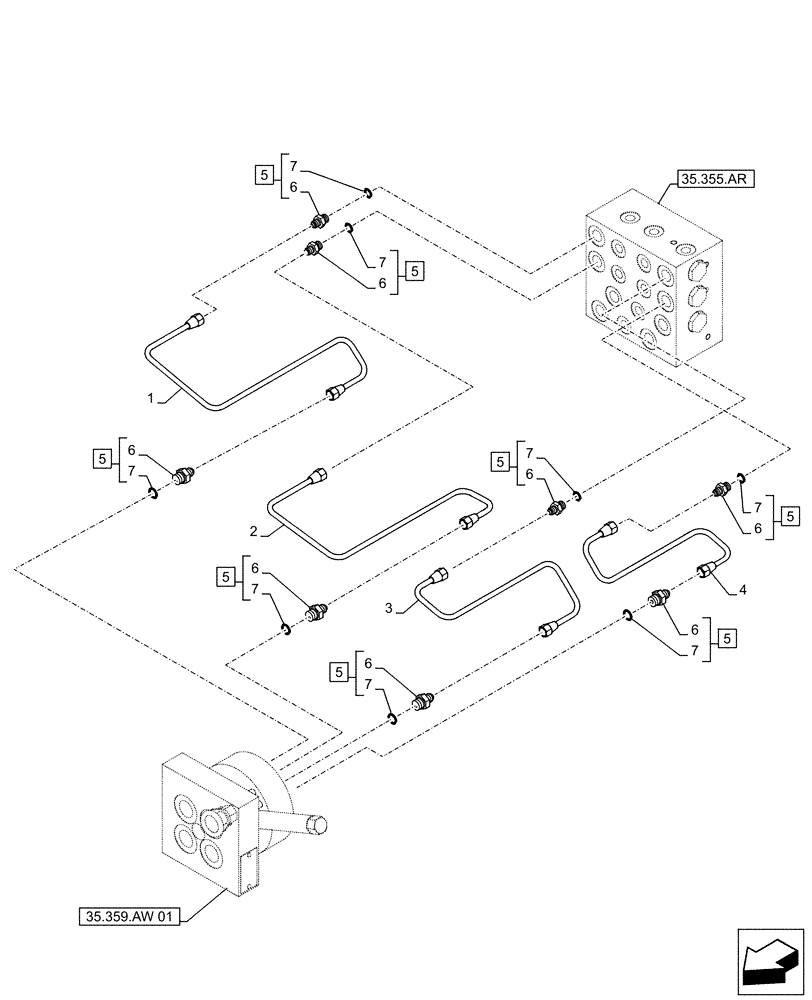

Схема запчастей Case CX500D LC - (35.355.AC[08]) - VAR - 461558 - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS
35.359.aw 01
6
7
4
7
5
6
7
6
7
5
7
2
5
7
6
6
7
5
6
1
7
6
5
5
5
3
6
35.355.ar
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ31960

PIPE

from Valve Selector to Cushion Valve

1шт.

2

KHJ31970

PIPE

from Valve Selector to Cushion Valve

1шт.

3

KHJ32490

PIPE

from Valve Selector to Cushion Valve

1шт.

4

KHJ23370

HYD TUBE

from Valve Selector to Cushion Valve

1шт.

5

KHJ1821

NIPPLE, LUBE

ASSY, Incl 6, 7

8шт.

6

NSS

NOT SOLD SEPARAT

Fitting, Incl in 5

8шт.

7

150031A1

O-RING,10mm ID x 24mm OD

8шт.
