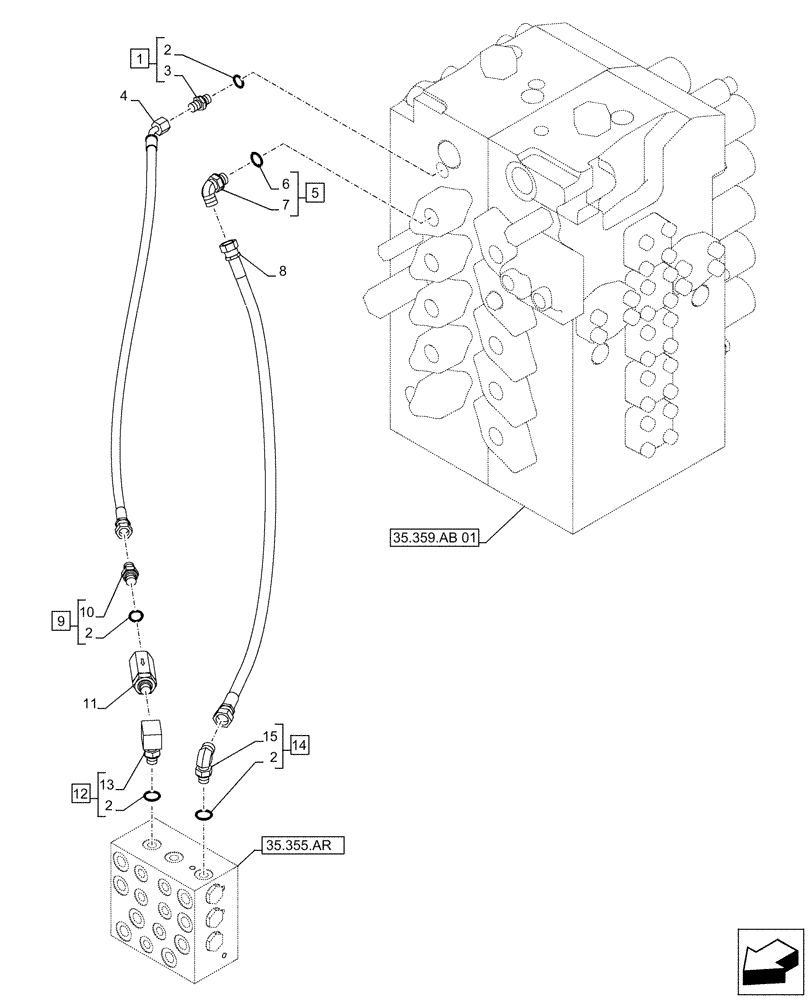

Запчасти Case CX500D LC (35.355.AC[05]) - STD + VAR - 461558 - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS

1

162366A1

ADAPTER

ASSY, G3/8" x G1/4" x G3/8", Incl 2 (Qty 1), 3

1шт.

2

150960A1

O-RING,10.8mm ID x 2.4mm Width

4шт.

3

NSS

NOT SOLD SEPARAT

Fitting, Incl in 1

1шт.

4

KHJ33650

HYDRAULIC HOSE

6mm ID x 1700mm, from Valve Control to Cushion Valve

1шт.

5

KHJ28590

ELBOW

ASSY, G3/8" x G3/8", Incl 6, 7

1шт.

6

150031A1

O-RING,10mm ID x 24mm OD

1шт.

7

NSS

NOT SOLD SEPARAT

Fitting, Incl in 5

1шт.

8

KHJ24350

HOSE

9mm ID x 1700mm, from Valve Control to Cushion Valve

1шт.

9

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, G1/4" x G1/4", Incl 2 (Qty 1), 10

1шт.

10

NSS

NOT SOLD SEPARAT

Fitting, Incl in 9

1шт.

11

KHJ10790

FILTER SCREEN

1шт.

12

KHJ0719

ELBOW

ASSY, G1/4" x G1/4", Incl 2 (Qty 1), 13

1шт.

13

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 12

1шт.

14

KHJ28710

ELBOW

ASSY, G1/4" x G3/8", Incl 2 (Qty 1), 15

1шт.

15

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 14

1шт.
