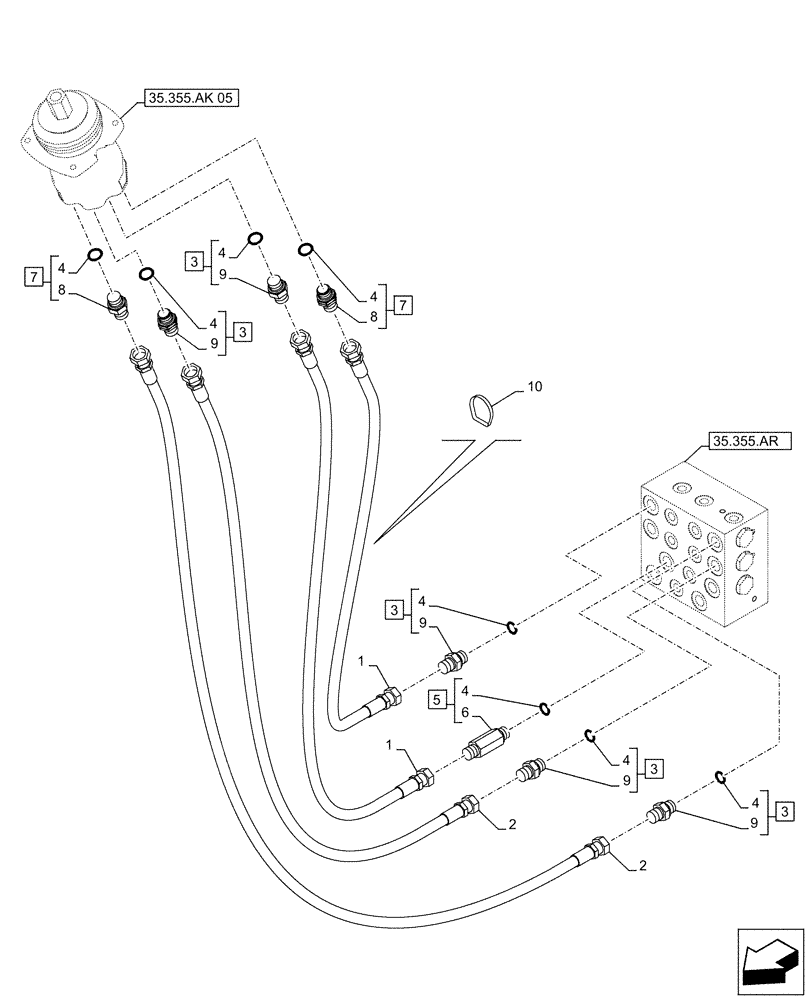

Запчасти Case CX500D LC (35.355.AC[02]) - JOYSTICK, LH, HYDRAULIC LINE, CONTROL VALVE (35) - HYDRAULIC SYSTEMS

1

168025A1

HYDRAULIC HOSE,9.50 mm ID x 1950.00 mm

9mm ID x 1950mm, from Valve Remote Control to Cushion Valve

2шт.

2

KTJ1633

HYDRAULIC HOSE

9mm ID x 1900mm, from Valve Remote Control to Cushion Valve

2шт.

3

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, G3/8" x G3/8", Incl 4 (Qty 1), 9

5шт.

4

150031A1

O-RING,10mm ID x 24mm OD

8шт.

5

KAJ2351

FITTING

ASSY, G3/8" x G3/8", Incl 4 (Qty 1) , 6

1шт.

6

NSS

NOT SOLD SEPARAT

Fitting, Incl in 5

1шт.

7

KHJ1402

ADAPTER

ASSY, G3/8" x G3/8", Incl 4 (Qty 1), 8

2шт.

8

NSS

NOT SOLD SEPARAT

Fitting, Incl in 7

2шт.

9

NSS

NOT SOLD SEPARAT

Fitting, Incl in 3

3шт.

10

150498A1

MOUNTING CLIP

8шт.
