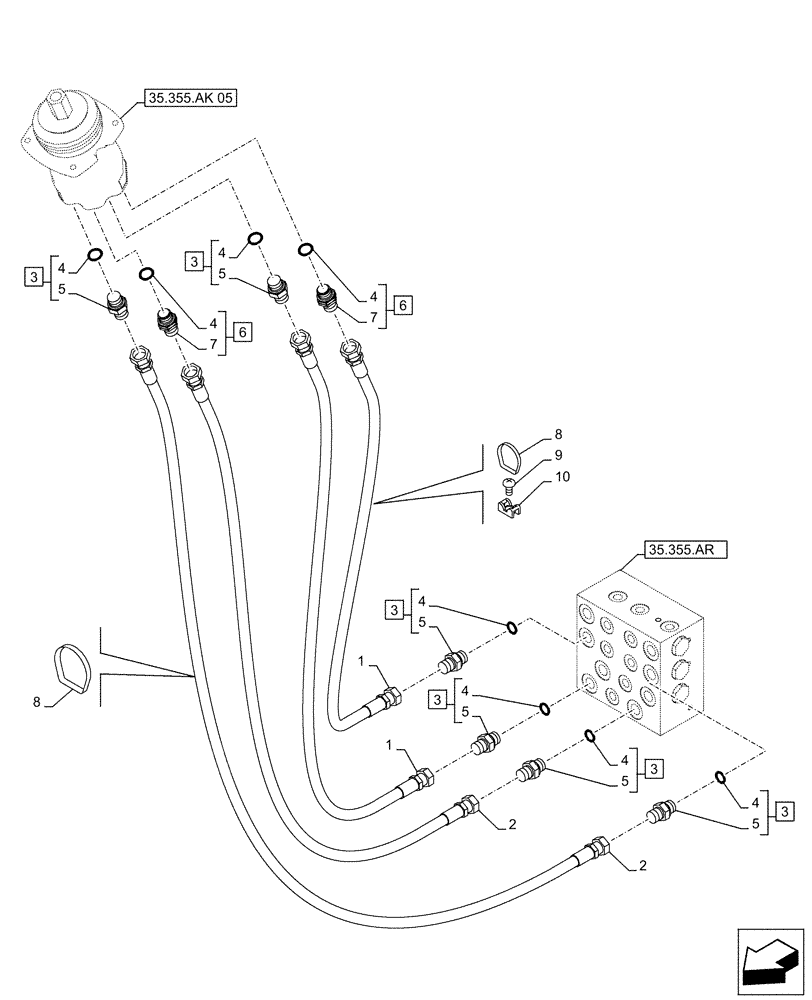

Запчасти Case CX500D LC (35.355.AC[01]) - JOYSTICK, RH, HYDRAULIC LINE, CONTROL VALVE (35) - HYDRAULIC SYSTEMS
![Схема запчастей Case CX500D LC - (35.355.AC[01]) - JOYSTICK, RH, HYDRAULIC LINE, CONTROL VALVE (35) - HYDRAULIC SYSTEMS](https://partsell.ru/storage/images/casece/5387564.png)
5
3
3
1
9
4
5
4
3
7
2
4
5
3
7
2
4
4
3
5
3
4
1
6
6
8
10
4
5
5
8
4
35.355.ar
35.355.ak 05
№
Артикул
Название
Примечание
Количество
1
159212A1
HYDRAULIC HOSE,9.50 mm ID x 2100.00 mm
9mm ID x 2100mm, from Vaòve Remote Control to Cushion Valve
2шт.
2
KHJ22430
HYDRAULIC HOSE
9mm ID X 2050mm, from Vaòve Remote Control to Cushion Valve
2шт.
3
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
ASSY, G3/8" x G3/8", Incl 4 (Qty 1), 5
6шт.
4
150031A1
O-RING,10mm ID x 24mm OD
8шт.
5
NSS
NOT SOLD SEPARAT
Fitting, Incl in 3
6шт.
6
KHJ1402
ADAPTER
ASSY, G3/8" x G3/8", Incl 4 (Qty 1), 7
2шт.
7
NSS
NOT SOLD SEPARAT
Fitting, Incl in 6
2шт.
8
150498A1
MOUNTING CLIP
8шт.
9
145N006S008R
SCREW,Pan Hd, M6 x 8mm, Cl 10.9
1шт.
10
150860A1
COLLAR
1шт.
Выбрано товаров: 10
