Запчасти Case CX500D LC (35.354.AF[02]) - HYDRAULIC SWIVEL, LINES (35) - HYDRAULIC SYSTEMS

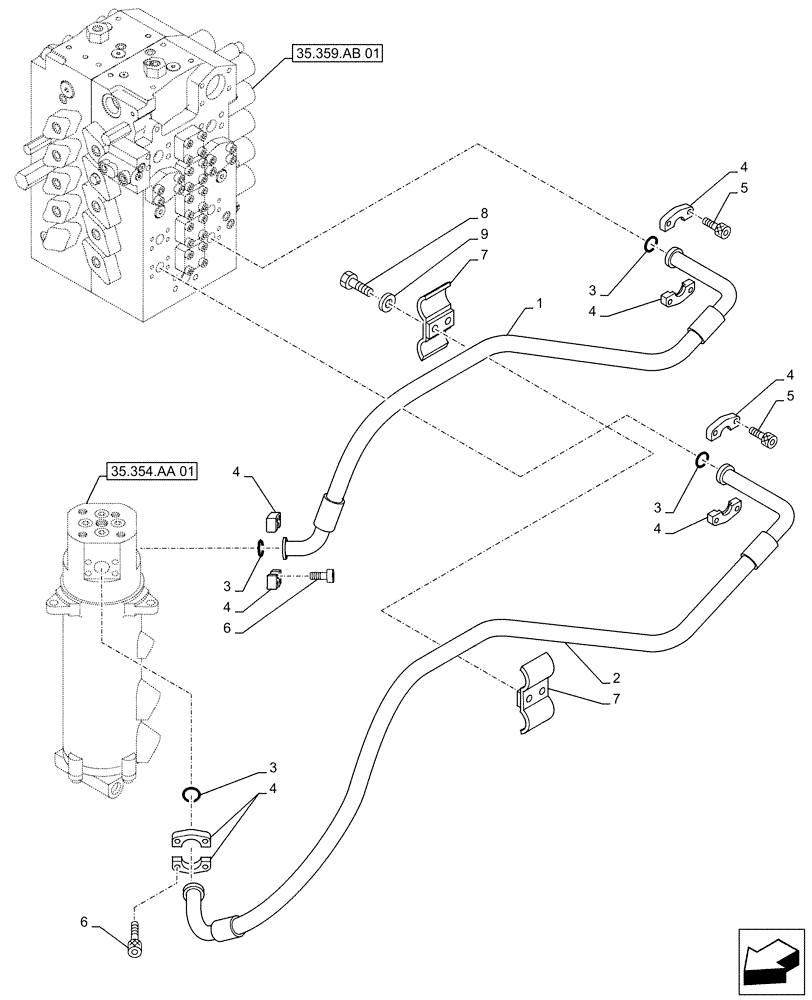

Схема запчастей Case CX500D LC - (35.354.AF[02]) - HYDRAULIC SWIVEL, LINES (35) - HYDRAULIC SYSTEMS
35.359.ab 01
4
9
4
5
3
4
8
4
3
4
3
4
2
5
1
3
6
6
4
7
7
35.354.aa 01

Артикул

Название

Примечание

Количество

1

KTJ2207

HYDRAULIC HOSE,25.40 mm ID x 1200.00 mm

25mm ID x 1200mm, from Center Joynt to Control Valve

1шт.

2

KTJ2208

HYDRAULIC HOSE,25.40 mm ID x 1480.00 mm

25mm ID x 1480mm, from Center Joynt to Control Valve

1шт.

3

162246A1

O-RING

4шт.

4

153459A1

FLANGE

8шт.

5

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

8шт.

6

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

8шт.

7

KSJ2724

CLAMP

M8 x 30mm

2шт.

8

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.

9

153081A1

WASHER

2шт.

Выбрано товаров: 9
