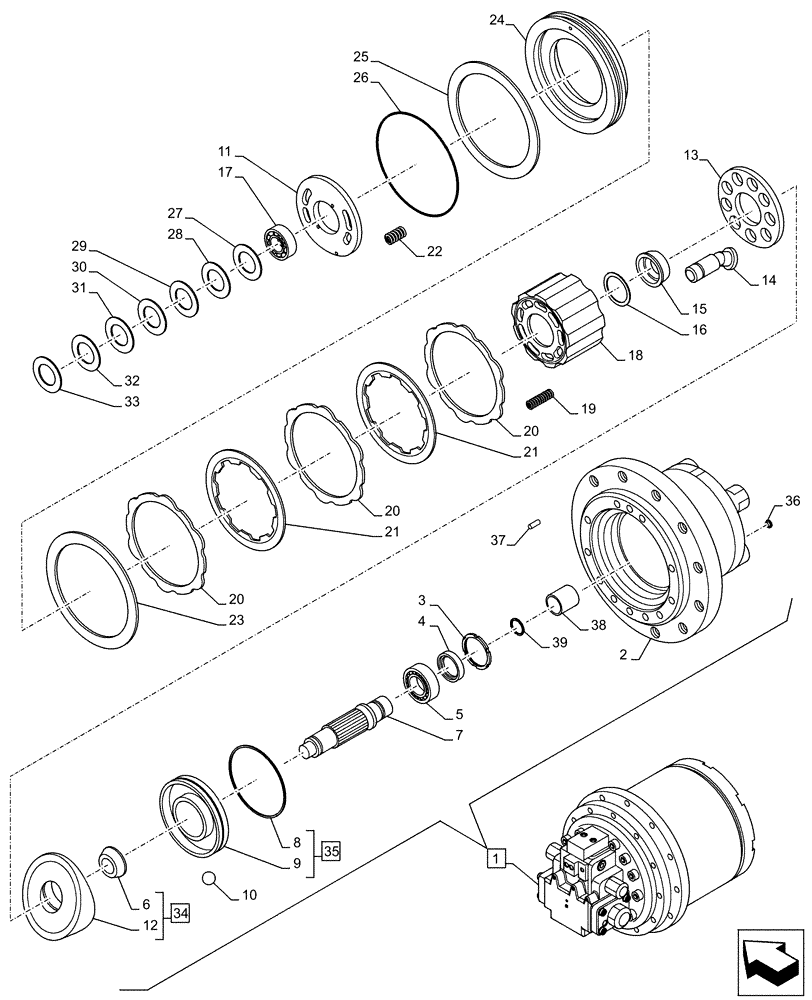

Запчасти Case CX500D LC (35.353.AD[03]) - TRAVEL MOTOR & REDUCTION GEAR, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

KTA10192

MOTO-REDUCTION GEAR

ASSY, Incl 2 - 39

1шт.

See also Figure 35.353.AD 02, 35.353.AB, 35.353.AG

1шт.

KTA10192R

REMAN-MOTO REDUCTION

Reman -- ASSY, Incl 2 - 39

1шт.

KTA10192C

CORE-MOTO-REDUCTION UNIT

Return Number

1шт.

2

LW005210

HOUSING

1шт.

3

LA017120

RING

1шт.

4

LE00997

OIL SEAL

1шт.

5

LB00834

TAPERED BEARING

1шт.

6

NSS

NOT SOLD SEPARAT

Bearing, Incl in 34

2шт.

7

LB00833

SHAFT

1шт.

8

NSS

NOT SOLD SEPARAT

Seal, Incl in 35

1шт.

9

NSS

NOT SOLD SEPARAT

Piston, Incl in 35

1шт.

10

LB011180

BALL

1шт.

11

LR015650

PLATE

1шт.

12

NSS

NOT SOLD SEPARAT

Plate, Incl in 34

1шт.

13

LH00320

RETAINER

1шт.

14

LJ015040

PISTON

9шт.

15

LB00795

BALL JOINT

1шт.

16

LR00950

SPRING SEAT

1шт.

17

LB00797

TAPERED BEARING,35mm ID x 72mm OD x 24.25mm W

1шт.

18

LS002910

BRACKET

1шт.

19

LG00430

COMPRESSION SPRING

9шт.

20

LR00858

PLATE

6шт.

21

LR00859

ADJUSTING PLATE

7шт.

22

LG00431

COMPRESSION SPRING

14шт.

23

LE012900

SEALING RING

1шт.

24

LJ00954

PISTON

1шт.

25

LE012910

SEALING RING

1шт.

26

LE00999

O-RING

1шт.

27

LH00389

SHIM KIT

1шт.

28

LH00428

SHIM,0.4mm Thk

1шт.

29

LH00429

SHIM,0.5mm Thk

1шт.

30

LH00430

SHIM,0.6mm Thk

1шт.

31

LH00431

SHIM,0.7mm Thk

1шт.

32

LH00433

SHIM,0.9mm Thk

1шт.

33

LH00432

SHIM,0.8mm Thk

1шт.

34

LR013570

PLATE

ASSY, Incl 6, 12

1шт.

35

LJ013800

PISTON

ASSY, Incl 8, 9

1шт.

36

LK005330

PLUG

2шт.

37

LA016540

PIN

1шт.

38

LB00793

COUPLING FLANGE

1шт.

39

LA017000

RING

1шт.
