(35.353.AD[01]) - TRAVEL MOTOR & REDUCTION GEAR, HOUSING

Запчасти Case CX500D LC (35.353.AD[01]) - TRAVEL MOTOR & REDUCTION GEAR, HOUSING (35) - HYDRAULIC SYSTEMS

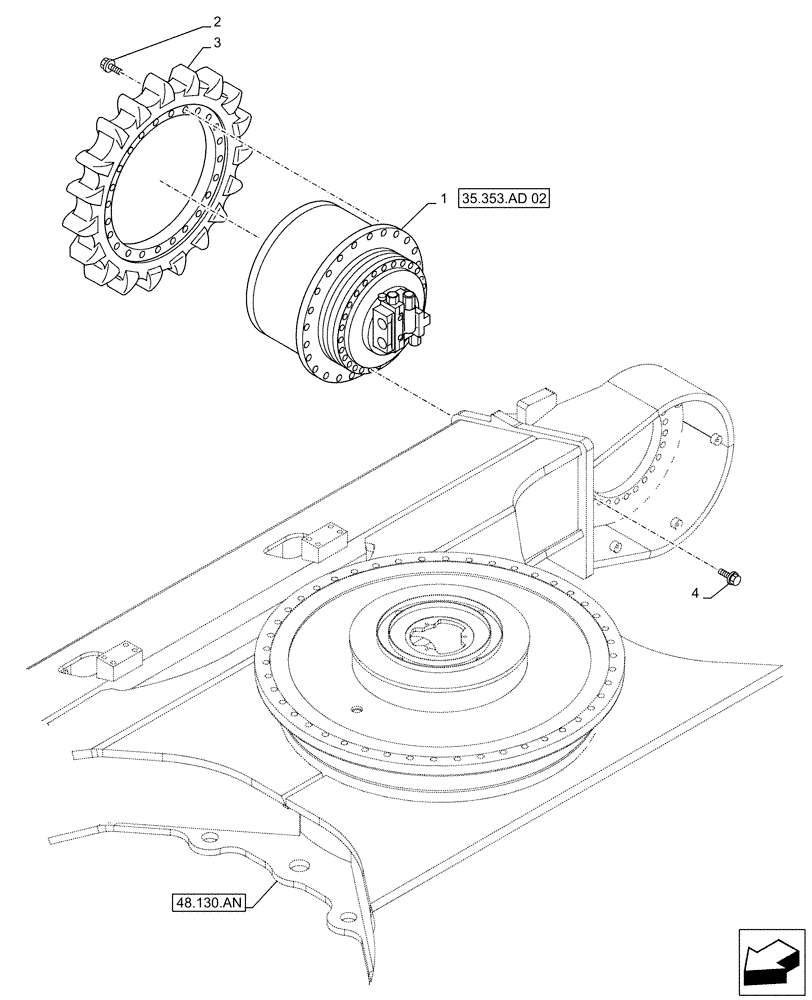

Схема запчастей Case CX500D LC - (35.353.AD[01]) - TRAVEL MOTOR & REDUCTION GEAR, HOUSING (35) - HYDRAULIC SYSTEMS
35.353.ad 02
1
2
4
3
48.130.an
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KTA10192

MOTO-REDUCTION GEAR

ASSY

2шт.

KTA10192R

REMAN-MOTO REDUCTION

Reman Assy

2шт.

KTA10192C

CORE-MOTO-REDUCTION UNIT

Return Number

2шт.

2

105R024Y070R

BOLT

M24 x 70mm

48шт.

3

KTA1069

SPROCKET

2шт.

4

166477A1

BOLT,Sems, M24 x 90mm

54шт.
