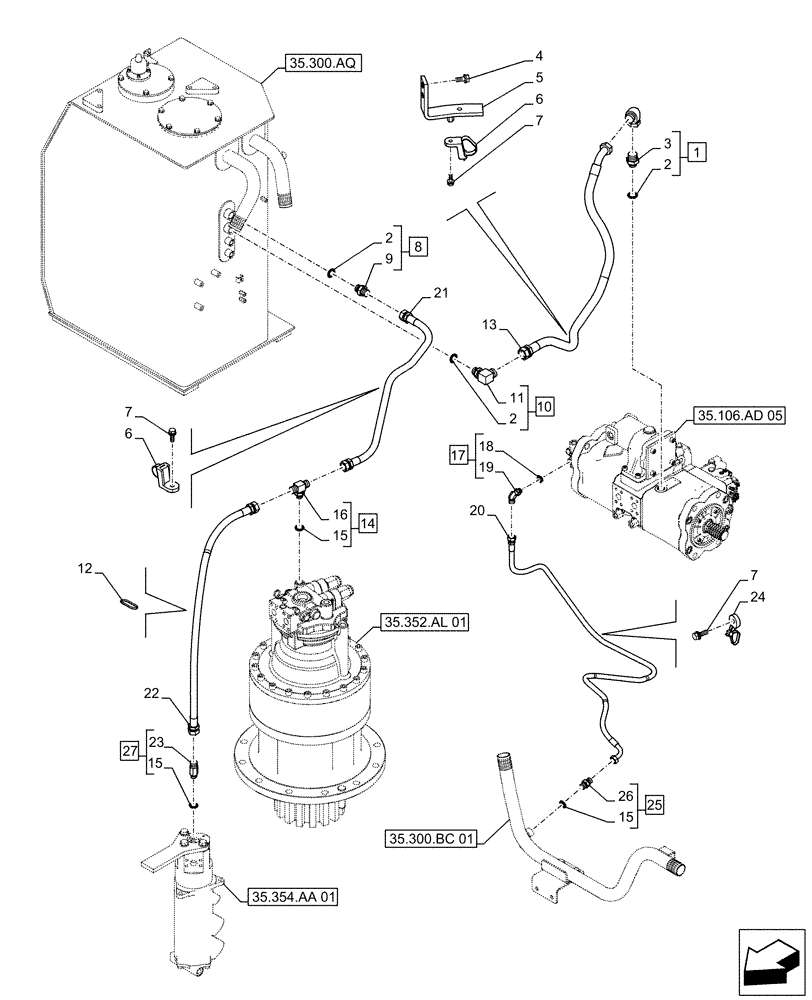

Запчасти Case CX500D LC (35.352.AI[02]) - MOTO-REDUCTION GEAR, LINES (35) - HYDRAULIC SYSTEMS

1

153001A1

ADAPTER

ASSY, Incl 2 (Qty 1), 3

1шт.

2

150542A1

O-RING

3шт.

3

NSS

NOT SOLD SEPARAT

Fitting, Incl in 1

1шт.

4

166052A1

BOLT

2шт.

5

KTJ16010

BRACKET

1шт.

6

KHR2581

CLAMP

2шт.

7

KHJ1215

BOLT,Spcl

3шт.

8

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ASSY, Incl 2 (Qty 1), 9

1шт.

9

NSS

NOT SOLD SEPARAT

Fitting, Incl in 8

1шт.

10

KHJ0603

ELBOW

ASSY, Incl 2 (Qty 1), 11

1шт.

11

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 10

1шт.

12

150496A1

MOUNTING CLIP

1шт.

13

KTJ16020

HYDRAULIC HOSE

from Hydraulic Pump to Sump Tank

1шт.

14

163114A1

TEE

ASSY, Incl 15 (Qty 1), 16

1шт.

15

150539A1

O-RING

3шт.

16

NSS

NOT SOLD SEPARAT

T Fitting, Incl in 14

1шт.

17

KHJ28720

ELBOW

ASSY, Incl 18, 19

1шт.

18

150031A1

O-RING,10mm ID x 24mm OD

1шт.

19

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 17

1шт.

20

KHJ2717

HYDRAULIC HOSE

1шт.

21

KBJ3062

HYDRAULIC HOSE

from Moto reduction gear to Sump Tank

1шт.

22

KTJ12080

HYDRAULIC HOSE

from Moto reduction gear to Center Joint

1шт.

23

NSS

NOT SOLD SEPARAT

Fitting, Incl in 27

1шт.

24

KHR2584

CLAMP

1шт.

25

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

ASSY, Incl 15 (Qty 1), 26

1шт.

26

NSS

NOT SOLD SEPARAT

Fitting, Incl in 25

1шт.

27

KAJ2358

FITTING

ASSY, Incl 15 (Qty 1), 23

1шт.
