(35.352.AI[01]) - VAR - 461568 - MOTO-REDUCTION GEAR, LINES, FREE SWING

Запчасти Case CX500D LC (35.352.AI[01]) - VAR - 461568 - MOTO-REDUCTION GEAR, LINES, FREE SWING (35) - HYDRAULIC SYSTEMS

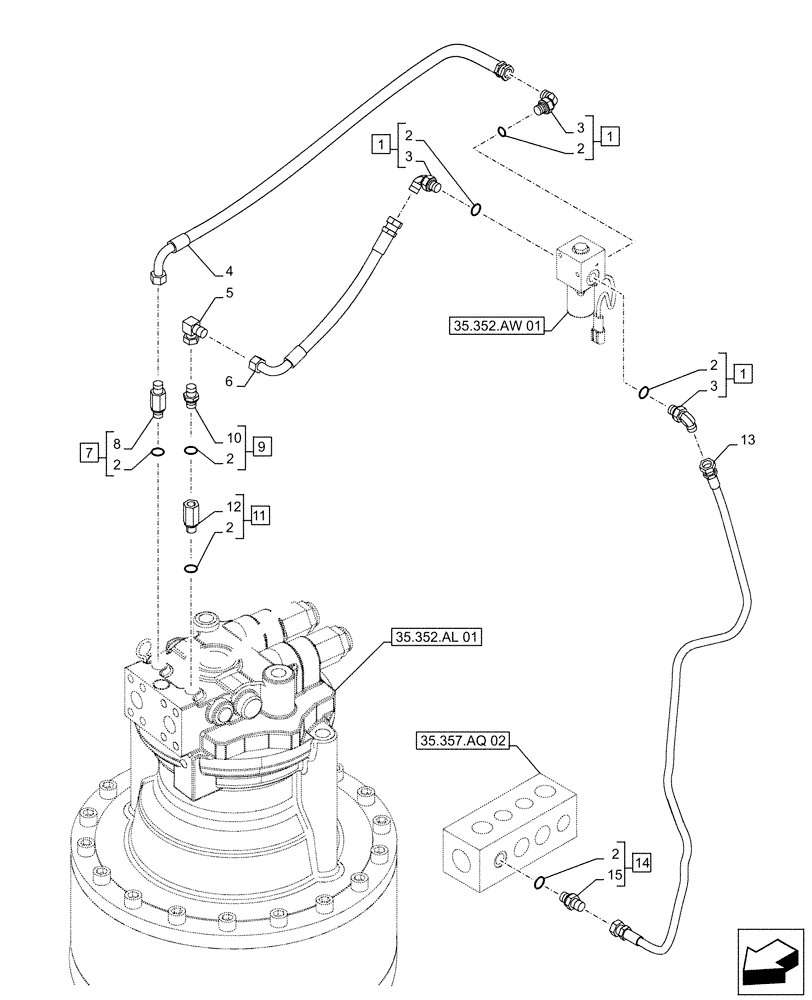

Схема запчастей Case CX500D LC - (35.352.AI[01]) - VAR - 461568 - MOTO-REDUCTION GEAR, LINES, FREE SWING (35) - HYDRAULIC SYSTEMS
35.352.aw 01
13
6
7
8
2
2
12
14
4
3
10
5
2
2
2
2
1
3
1
1
9
11
3
35.352.al 01
2
15
35.357.aq 02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ28580

ELBOW

ASSY, Incl 2 (Qty 1), 3

3шт.

2

150960A1

O-RING,10.8mm ID x 2.4mm Width

7шт.

3

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 1

3шт.

4

KTJ14640

HYDRAULIC HOSE

from Moto-Reduction gear to Valve

1шт.

5

163814A1

ELBOW

1шт.

6

KTJ12950

HOSE ASSY.

from Moto-Reduction gear to Valve

1шт.

7

162554A1

FITTING

ASSY, Incl 2 (Qty 1), 8

1шт.

8

NSS

NOT SOLD SEPARAT

Fitting, Incl in 7

1шт.

9

162366A1

ADAPTER

ASSY, Incl 2 (Qty 1), 10

1шт.

10

NSS

NOT SOLD SEPARAT

Fitting, Incl in 9

1шт.

11

162525A1

STUD

ASSY, Incl 2 (Qty 1), 12

1шт.

12

NSS

NOT SOLD SEPARAT

Fitting, Incl in 11

1шт.

13

KHJ2056

HYDRAULIC HOSE

from Valve to Manifold

1шт.

14

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 2 (Qty 1), 15

1шт.

15

NSS

NOT SOLD SEPARAT

Fitting, Incl in 14

1шт.
